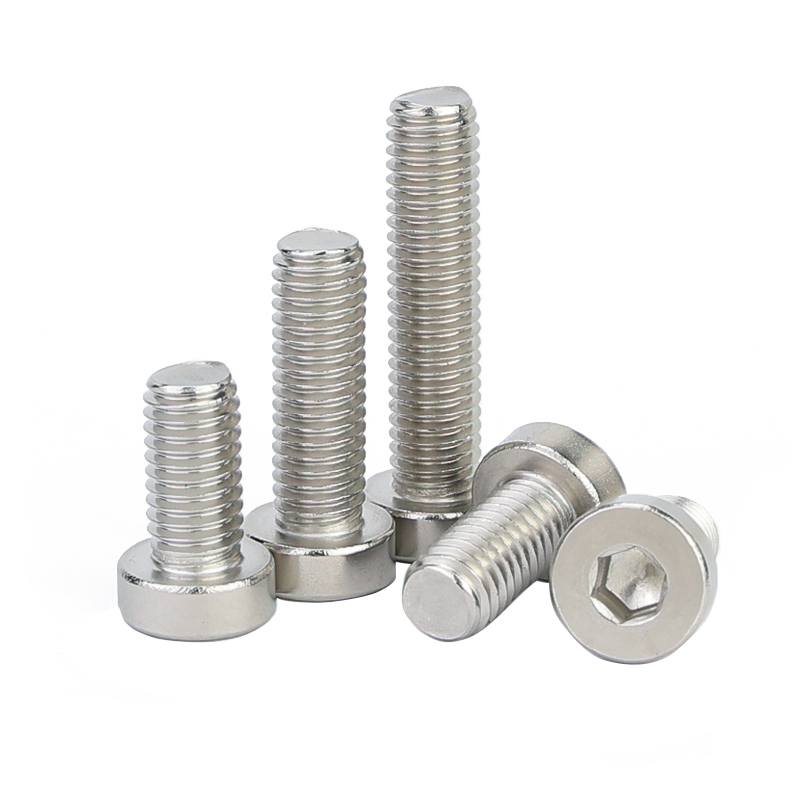

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts Featured Image
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts
  • Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low Head Hex Socket Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

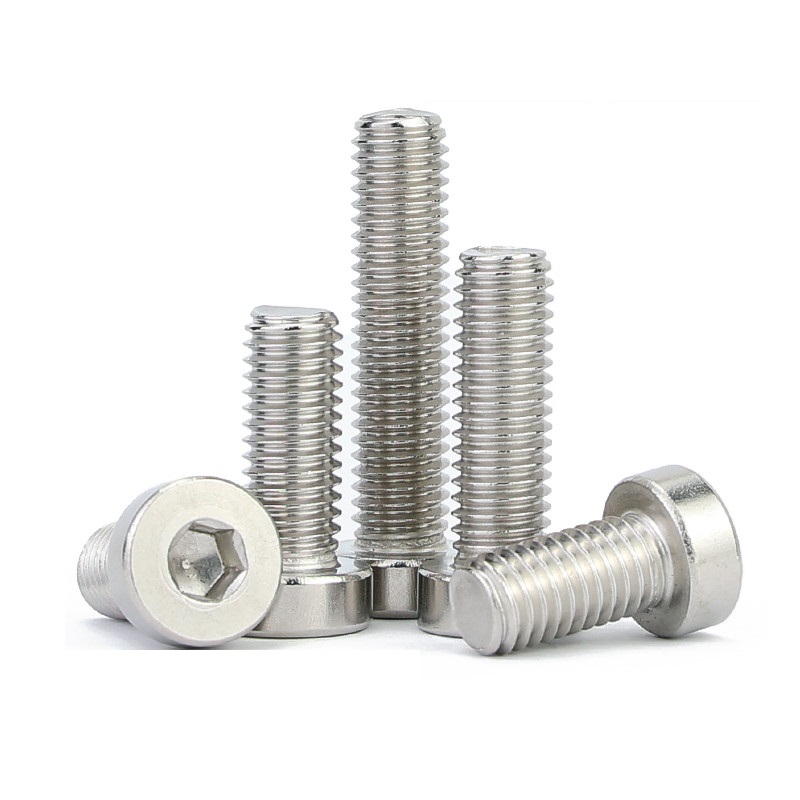

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low (1)
    Name Low head allen bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

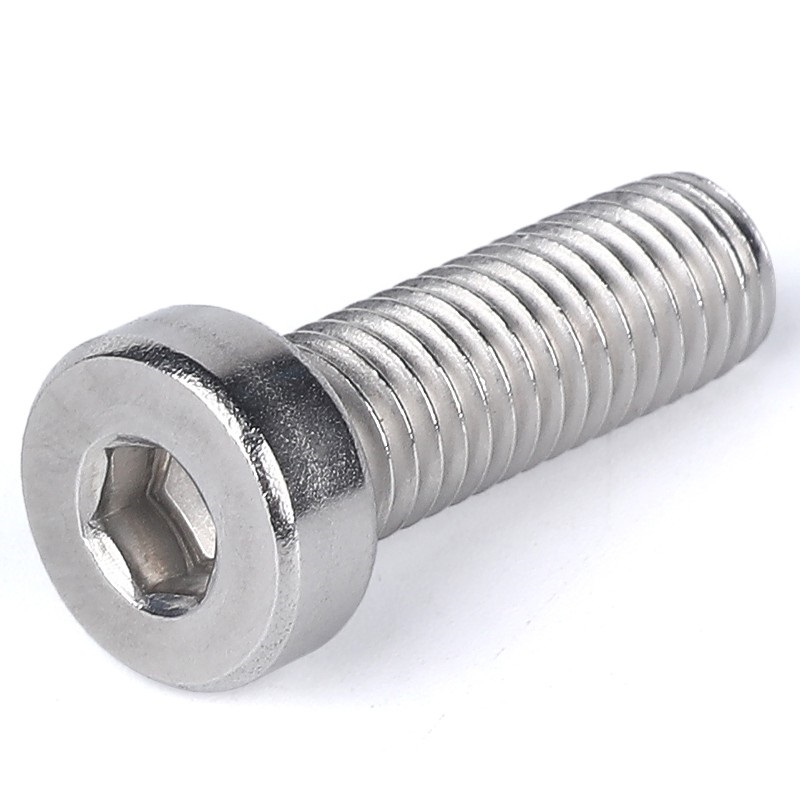

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low ( (7)
    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low (

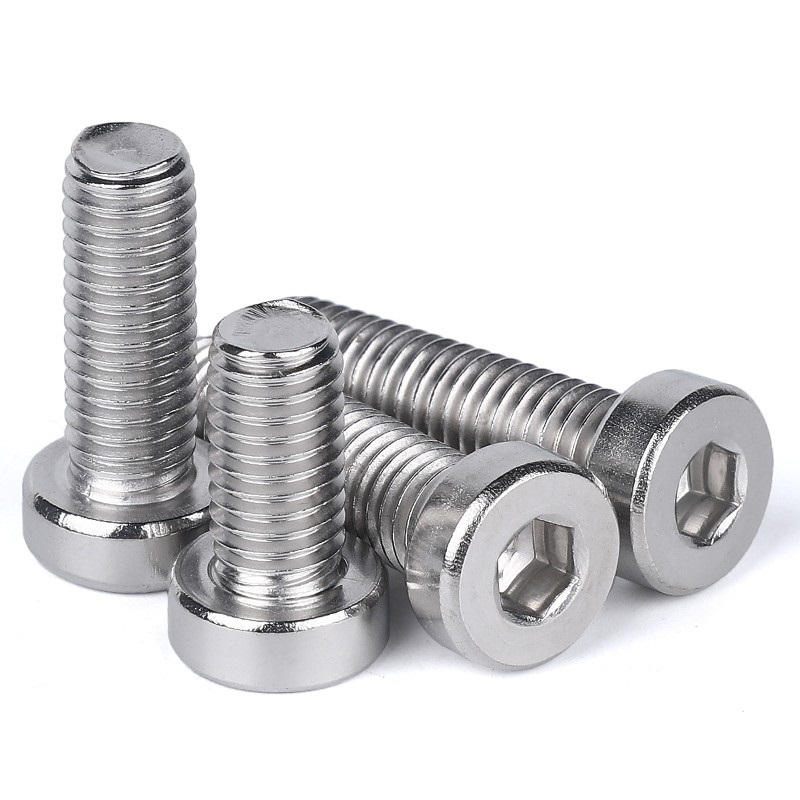

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low ( (5)

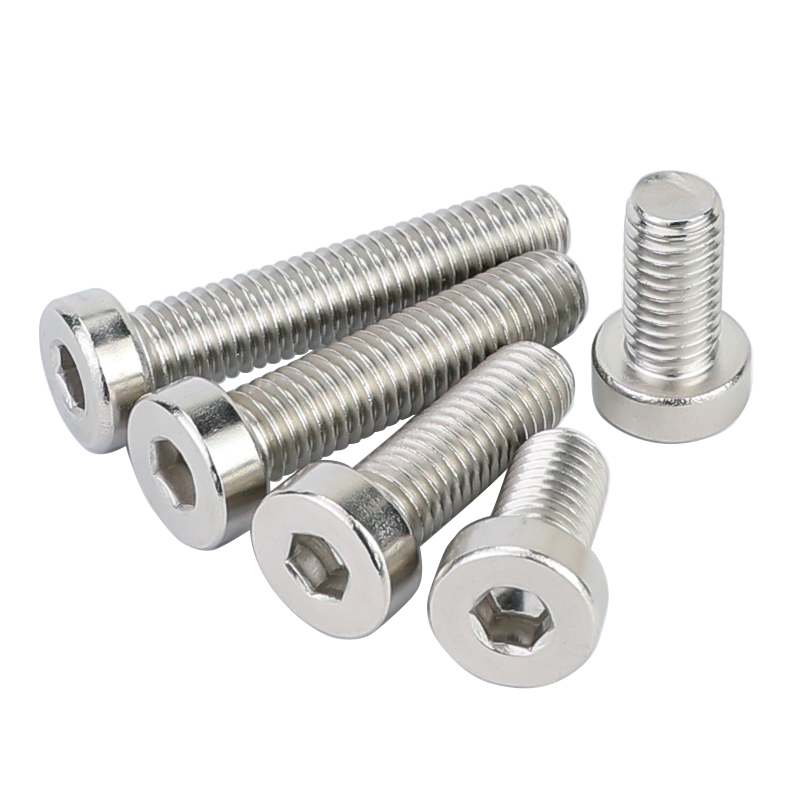

    Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7984 Low ( (4)

    Product Standards

    detail14

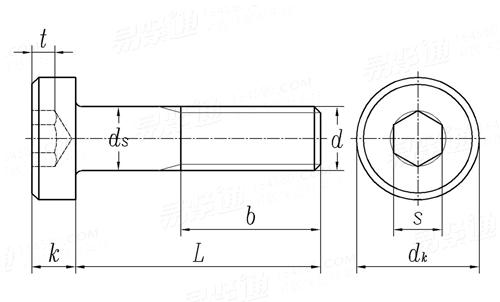

    Hexagon socket head cap screws DIN 7984
    Thread specification M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
    d
    P pitch 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
    b L≤125 12 14 16 18 twenty two 26 30 34 38 42 46 50 54
    125＜L≤200 - - - - 28 32 36 40 44 48 52 56 60
    L＞200 - - - - - - - - 57 61 65 69 73
    dk max = nominal 5.5 7 8.5 10 13 16 18 twenty one twenty four 27 30 33 36
    minimum 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67 32.61 35.61
    ds max = nominal 3 4 5 6 8 10 12 14 16 18 20 twenty two twenty four
    minimum 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67 21.67 23.67
    k max = nominal 2 2.8 3.5 4 5 6 7 8 9 10 11 12 13
    minimum 1.86 2.66 3.32 3.82 4.82 5.82 6.78 7.78 8.78 9.78 10.73 11.73 12.73
    s Nominal 2 2.5 3 4 5 7 8 10 12 12 14 14 17
    minimum 2.02 2.52 3.02 4.02 5.02 7.025 8.025 10.025 12.032 12.032 14.032 14.032 17.05
    maximum value 2.1 2.6 3.1 4.12 5.14 7.175 8.175 10.175 12.212 12.212 14.212 14.212 17.23
    t Nominal 1.5 2.3 2.7 3 3.8 4.5 5 5.3 5.5 6.5 7.5 8 8
    minimum 1.38 2.18 2.58 2.88 3.65 4.35 4.85 5.15 5.35 6.32 7.32 7.82 7.82
    maximum value 1.62 2.42 2.82 3.12 3.95 4.65 5.15 5.45 5.65 6.68 7.68 8.18 8.18
    Thousand pieces of steel weight ≈kg - - - - - - - - - - - - -
