Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts

Moq:

test

Price:

test

Package:

test

Export port:

test

Delivery date:

test

Payment method:

test

High Strength Grade 4 8 10 12 Steel Dacromet DI...

MOQ:111

Price:111
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 C...

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Galvanized ...

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Dacromet DI...

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Color Yello...

MOQ:111

Price:111
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 D...

MOQ:111

Price:111

Product Detail

Product Tags

Product Photos and Information

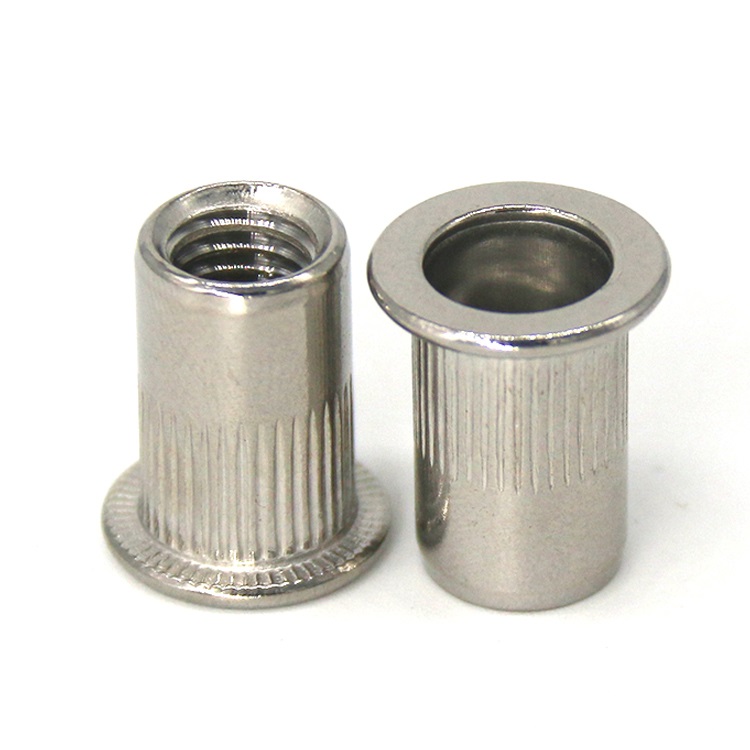

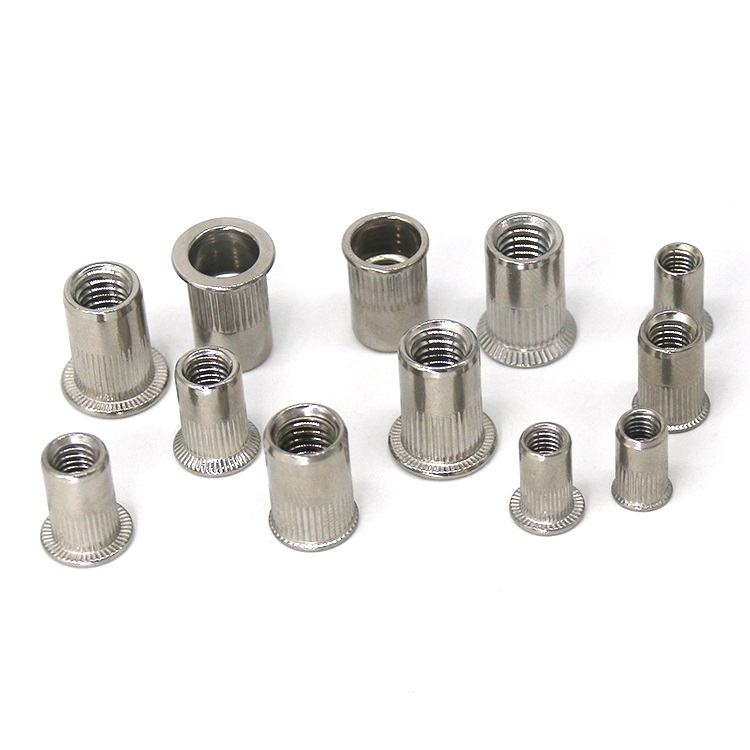

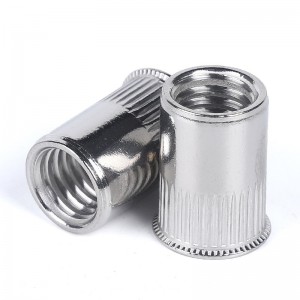

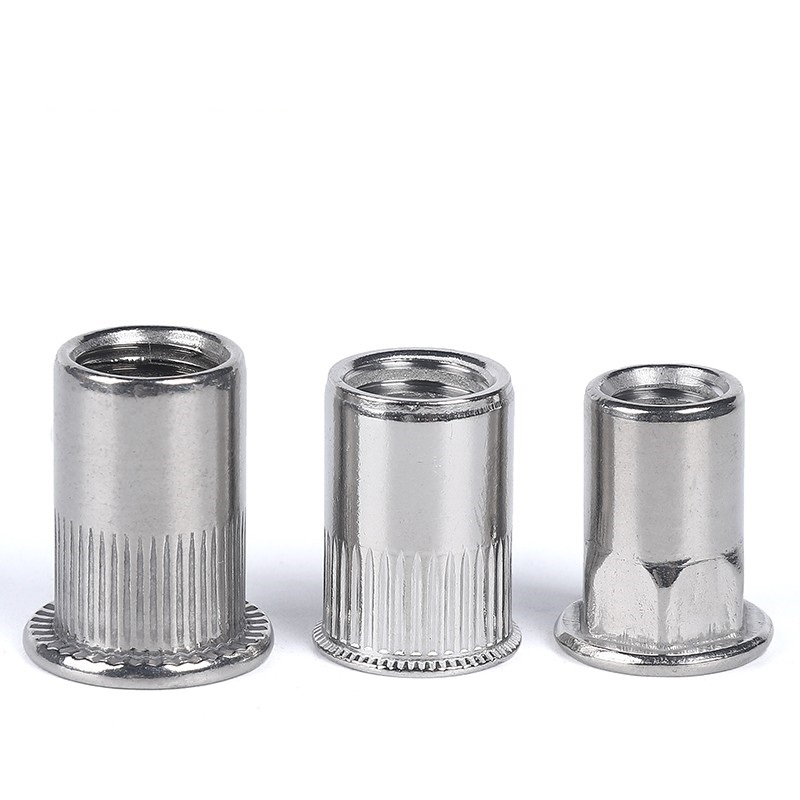

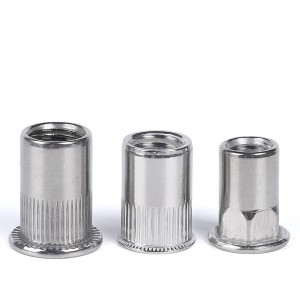

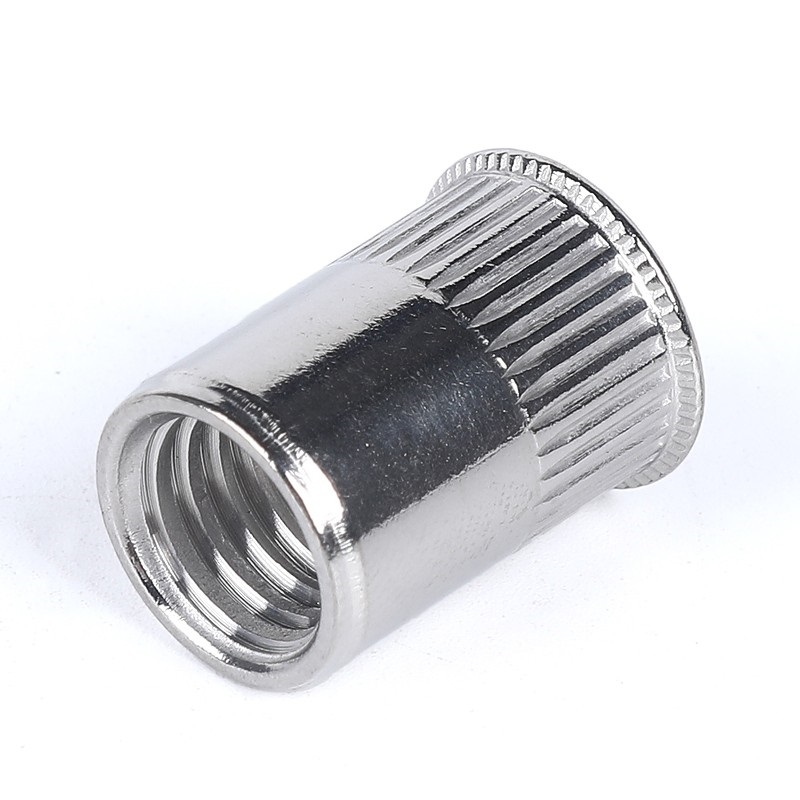

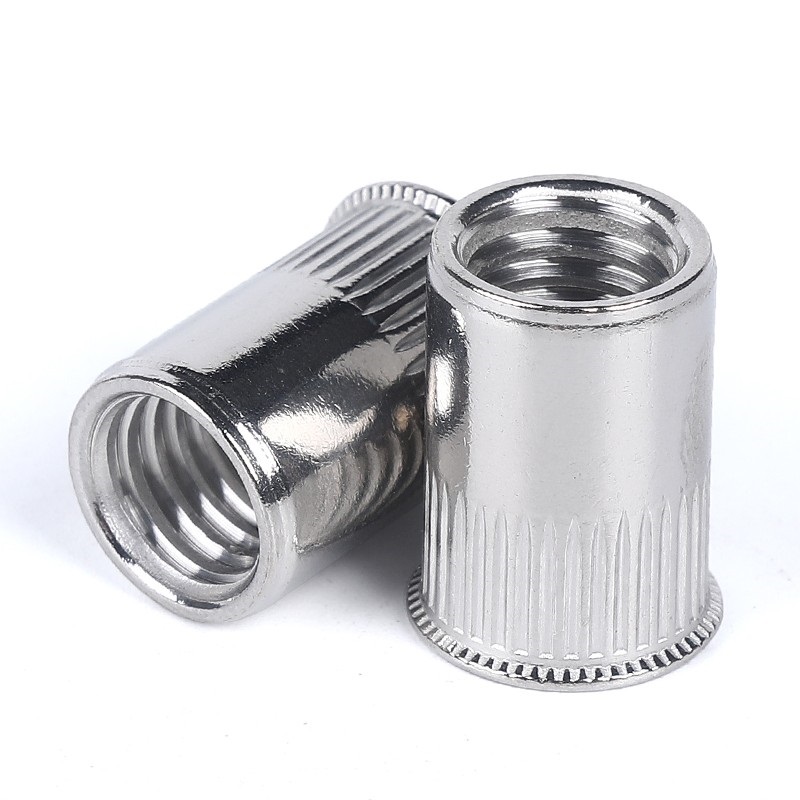

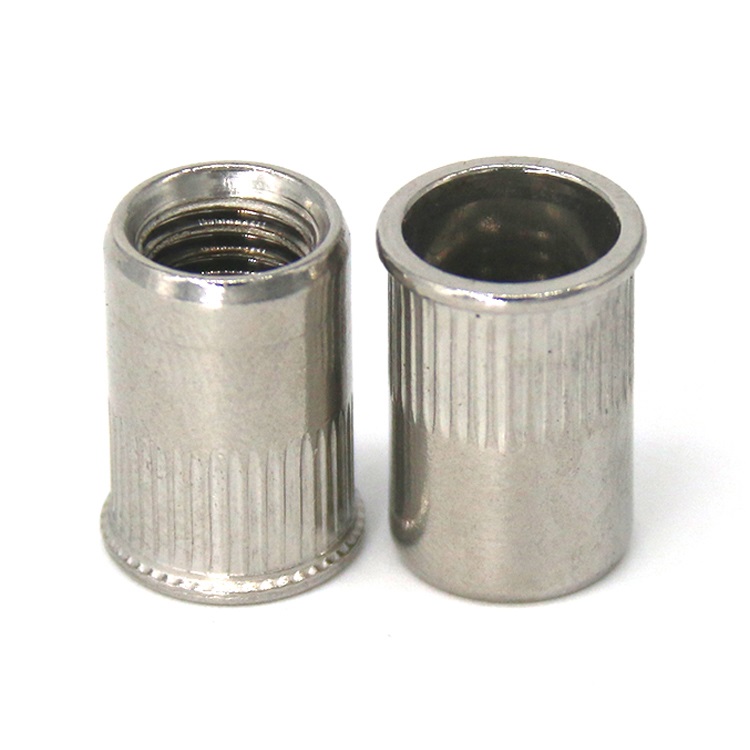

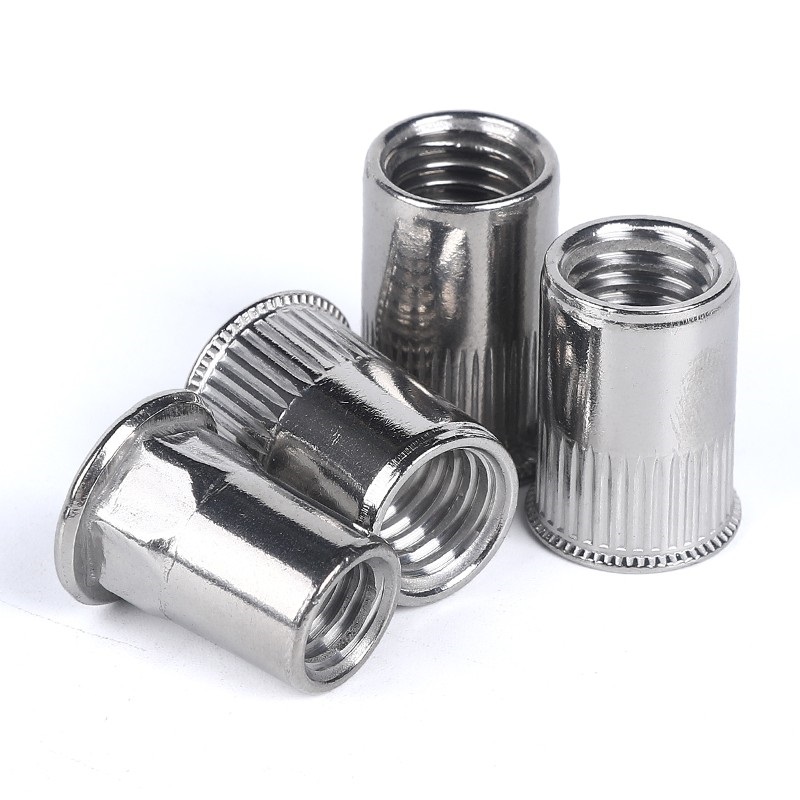

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts (1)

Name	Rivet Nuts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M12
Length	9-24
Materials	Carbon Steel/Stainless Steel
Strength level	4 5 8
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Available

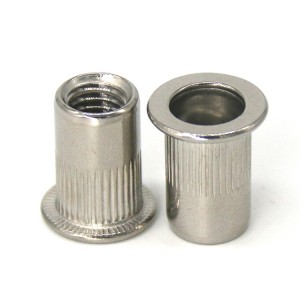

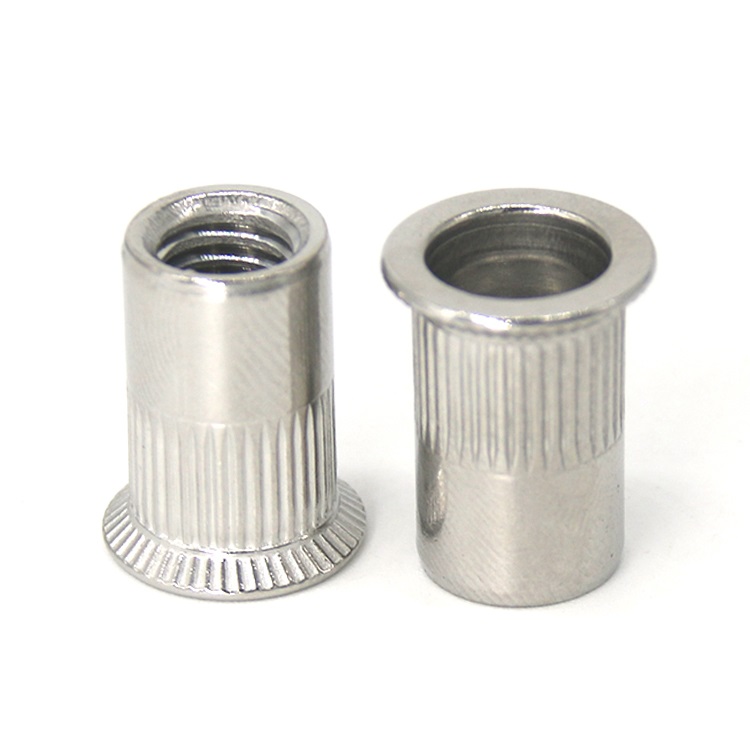

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts (8)

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts (6)

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts (3)

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN7340 Rivet Nuts (5)

Product Standards

Flat head full hollow rivets DIN 7340
Nominal diameter		F1	Φ1.2	Φ1.5	Φ1.5	Φ2	Φ2	Φ2.5	Φ2.5	Φ2.5	F3	F3	F3	F4	F4	F4
d		F1	Φ1.2	Φ1.5	Φ1.5	Φ2	Φ2	Φ2.5	Φ2.5	Φ2.5	F3	F3	F3	F4	F4	F4
d	maximum value	1.03	1.23	1.53	1.53	2.03	2.03	2.55	2.55	2.55	3.05	3.05	3.05	4.07	4.07	4.07
d	minimum	0.97	1.17	1.47	1.47	1.97	1.97	2.45	2.45	2.45	2.95	2.95	2.95	3.93	3.93	3.93
dk	Nominal	1.6	2	2.5	2.5	3.2	3.2	4	4	4	4.5	4.5	4.5	6	6	6
	maximum value	1.75	2.15	2.65	2.65	3.4	3.4	4.2	4.2	4.2	4.7	4.7	4.7	6.25	6.25	6.25
	minimum	1.45	1.85	2.35	2.35	3	3	3.8	3.8	3.8	4.3	4.3	4.3	5.75	5.75	5.75
k	≈	0.25	0.3	0.35	0.4	0.4	0.45	0.4	0.5	0.6	0.5	0.5	0.6	0.65	0.7	0.8
h	Nominal	0.2	0.2	0.2	0.25	0.2	0.3	0.25	0.3	0.4	0.25	0.3	0.5	0.3	0.4	0.5
	maximum value	0.22	0.22	0.22	0.275	0.22	0.33	0.275	0.33	0.44	0.275	0.33	0.55	0.33	0.44	0.55
	minimum	0.18	0.18	0.18	0.225	0.18	0.27	0.225	0.27	0.36	0.225	0.27	0.45	0.27	0.36	0.45
Thousand pieces of steel weight ≈kg		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Nominal diameter		F5	F5	F5	F6	F6	F6	F6	F8	F8	F8	F8	Φ10	Φ10	Φ10
d		F5	F5	F5	F6	F6	F6	F6	F8	F8	F8	F8	Φ10	Φ10	Φ10
d	maximum value	5.07	5.07	5.07	6.01	6.01	6.01	6.01	8.01	8.01	8.01	8.01	10.01	10.01	10.01
d	minimum	4.93	4.93	4.93	5.99	5.99	5.99	5.99	7.99	7.99	7.99	7.99	9.99	9.99	9.99
dk	Nominal	7.5	7.5	7.5	9	9	9	9	12	12	12	12	15	15	15
	maximum value	7.75	7.75	7.75	9.25	9.25	9.25	9.25	12.3	12.3	12.3	12.3	15.3	15.3	15.3
	minimum	7.25	7.25	7.25	8.75	8.75	8.75	8.75	11.7	11.7	11.7	11.7	14.7	14.7	14.7
k	≈	0.75	0.9	1	0.95	1	1.1	1.3	1.2	1.3	1.4	1.5	1.5	1.6	1.7
h	Nominal	0.3	0.5	0.75	0.4	0.5	0.75	1	0.4	0.5	0.75	1	0.5	0.75	1
	maximum value	0.33	0.55	0.825	0.44	0.55	0.825	1.1	0.44	0.55	0.825	1.1	0.55	0.825	1.1
	minimum	0.27	0.45	0.675	0.36	0.45	0.675	0.9	0.36	0.45	0.675	0.9	0.45	0.675	0.9
Thousand pieces of steel weight ≈kg		-	-	-	-	-	-	-	-	-	-	-	-	-	-
