Stainless Steel A2-70 A4-80 SS201 SS304 SS316 DIN6926 DIN1663 Nylon Lock Nuts With Flange Flange Nylock Nuts

Moq:

test

Price:

test

Package:

test

Export port:

test

Delivery date:

test

Payment method:

test

High Strength Grade 4 8 10 12 Steel Galvanized ...

MOQ:111

Price:111

Product Detail

Product Tags

Product Photos and Information

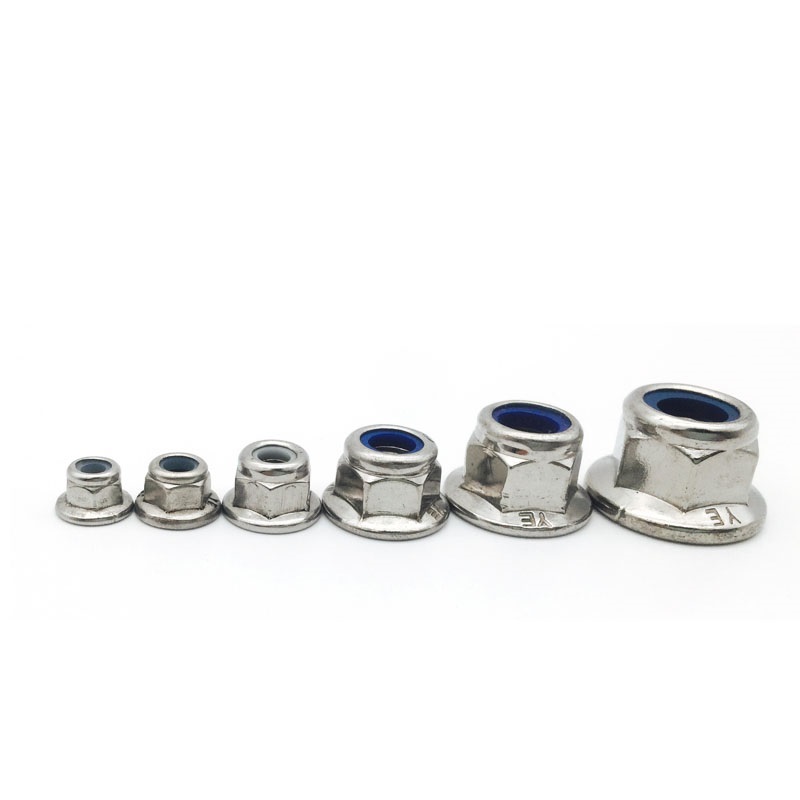

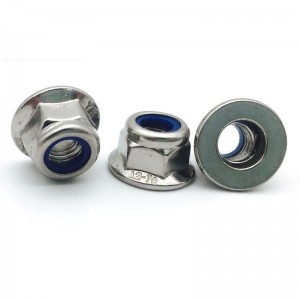

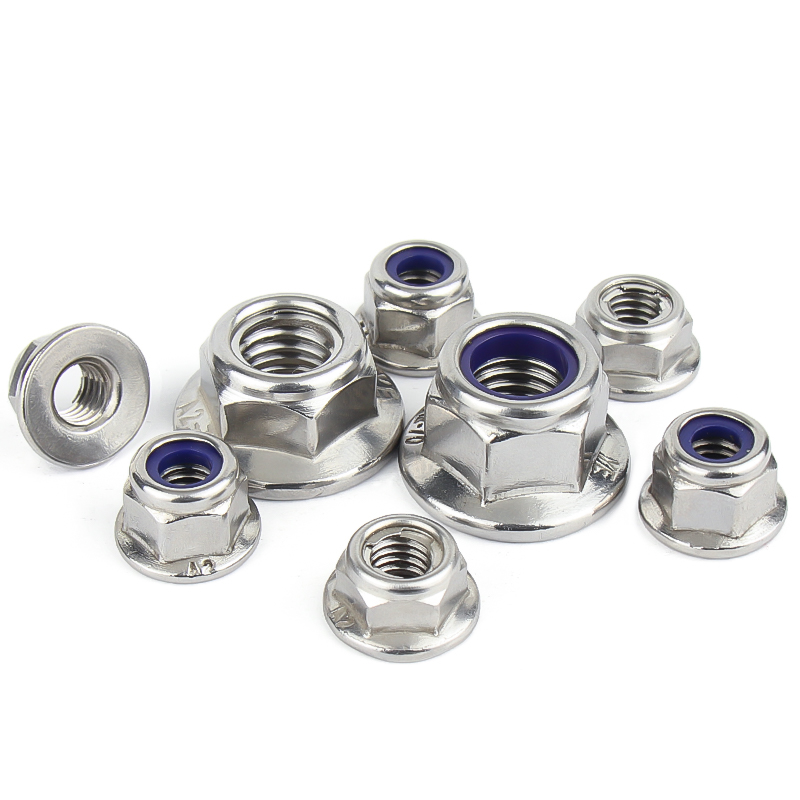

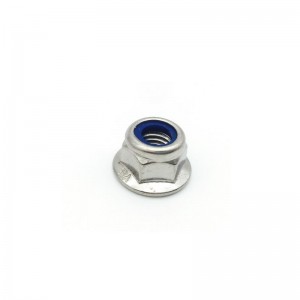

Stainless Steel A2-70 A4-80 SS201 SS304 (1)

Name	Nylock Nut With Flange
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M50
Length	5-32
Materials	Carbon Steel/Stainless Steel
Strength level	4 5 8 10 12 A2-70 A4-70 A4-80 etc.
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Available

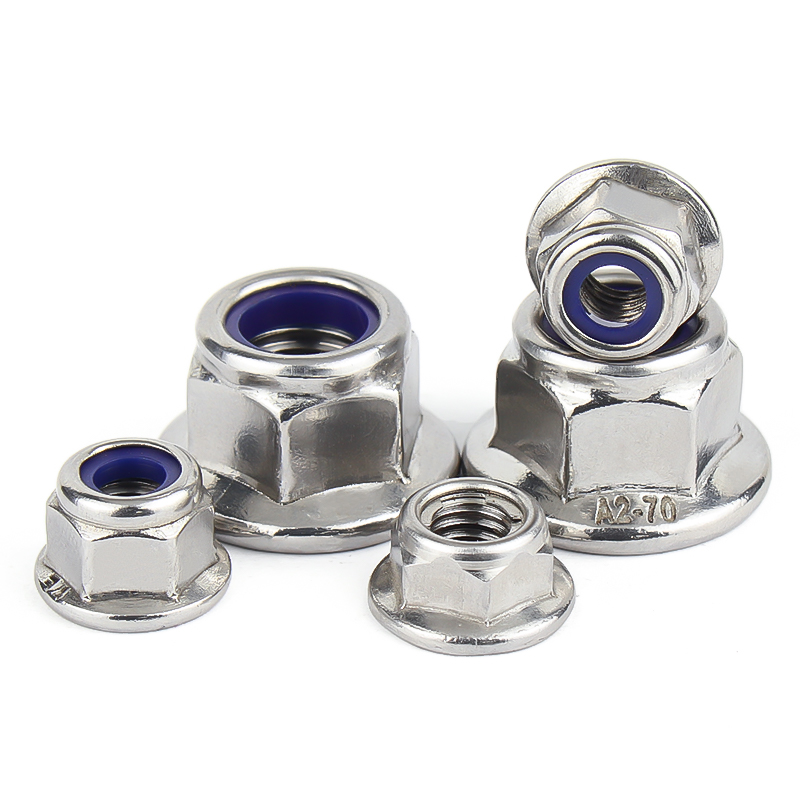

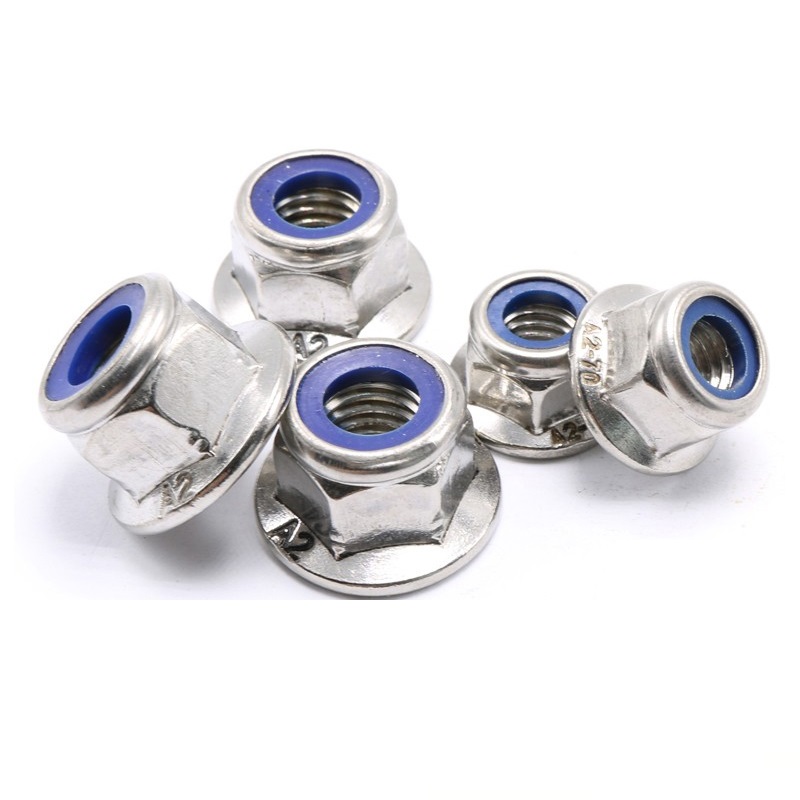

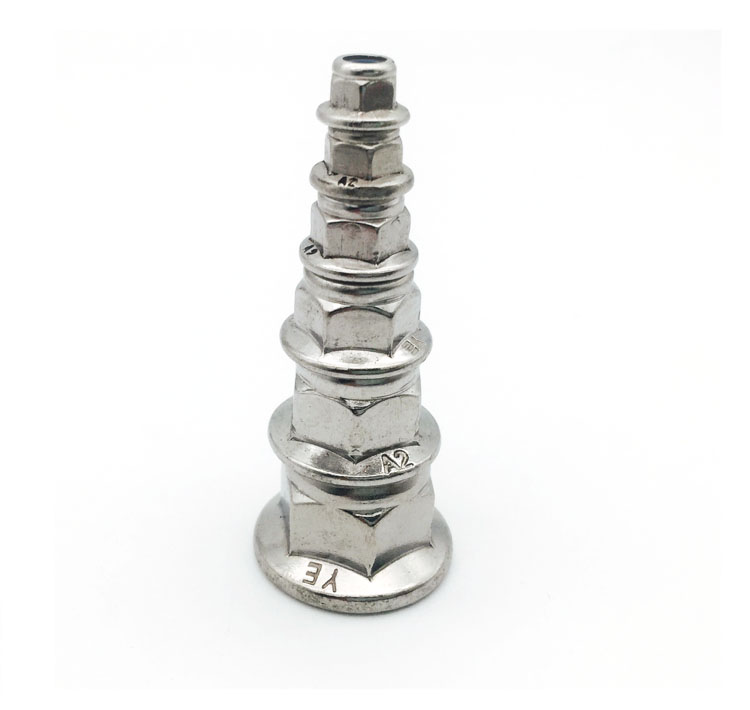

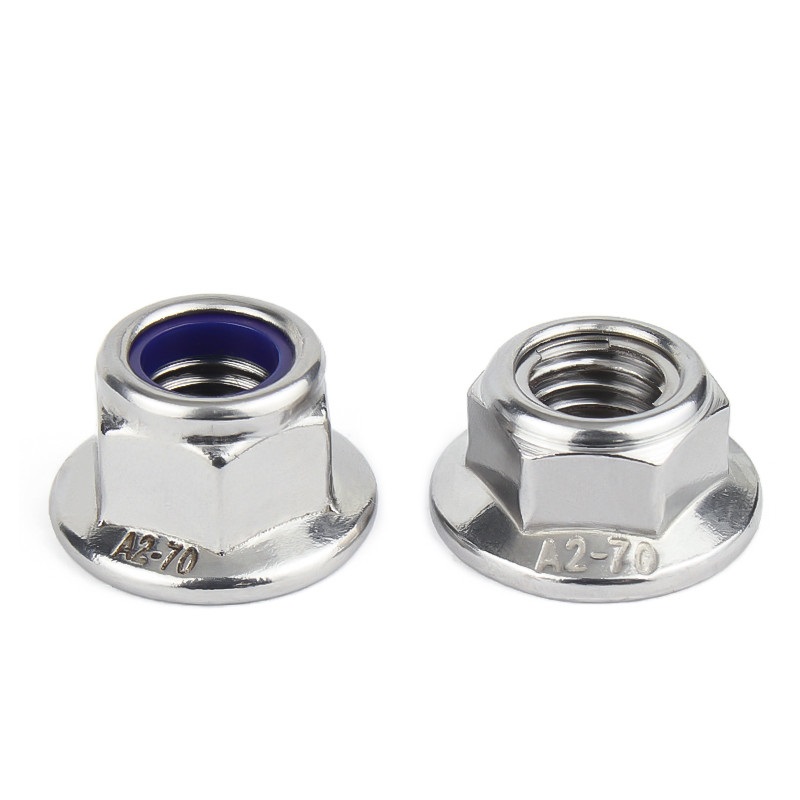

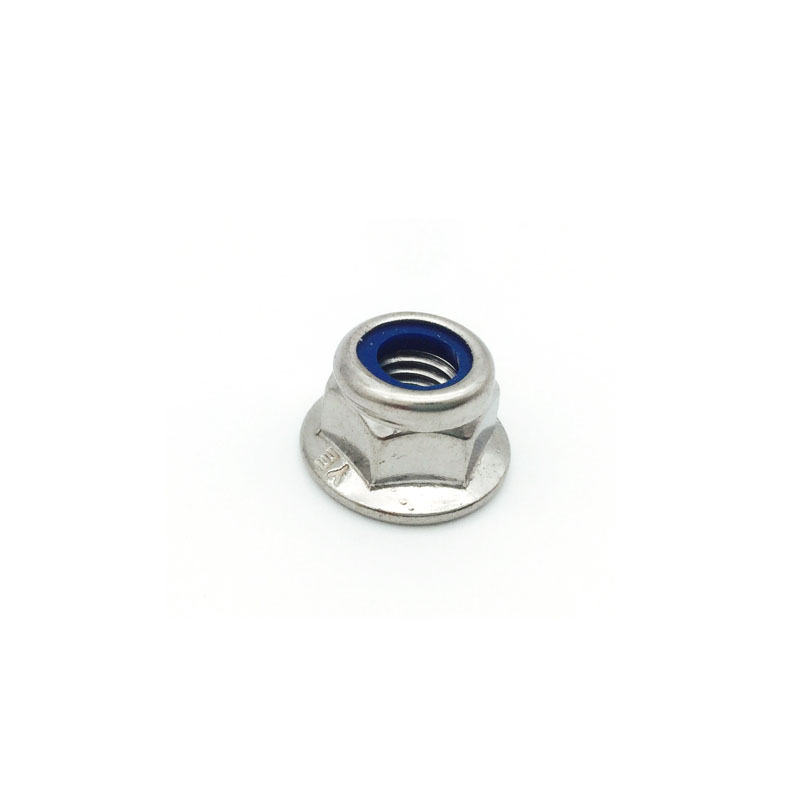

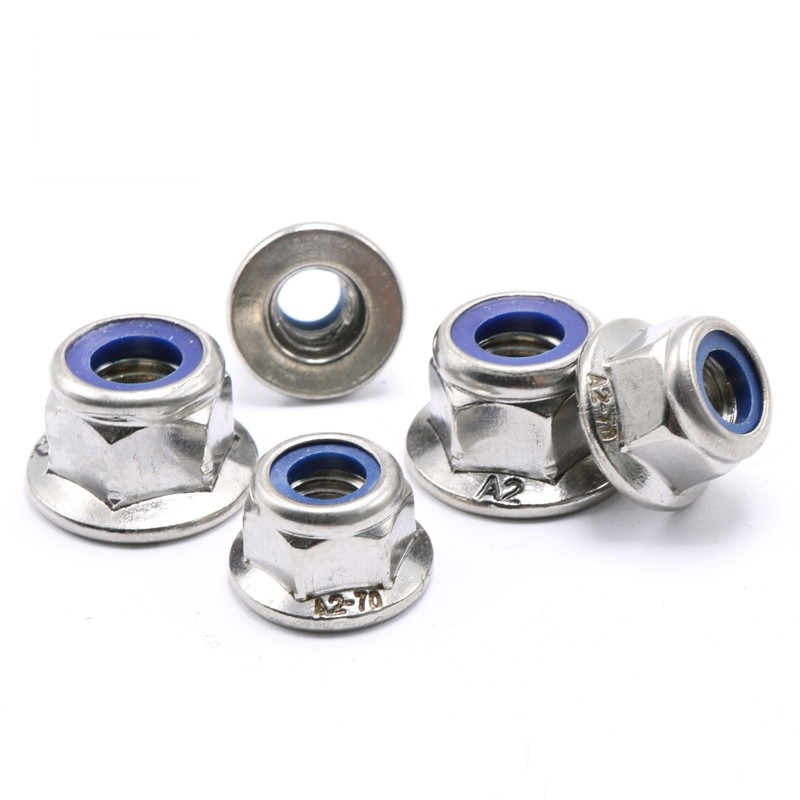

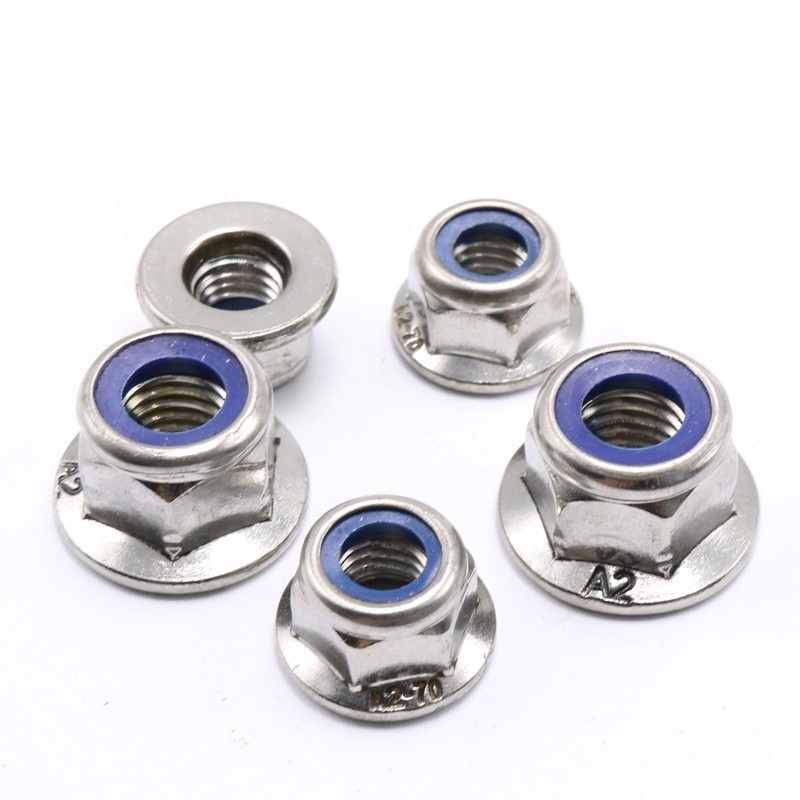

Stainless Steel A2-70 A4-80 SS201 SS304 (

Stainless Steel A2-70 A4-80 SS201 SS304 ( (9)

Stainless Steel A2-70 A4-80 SS201 SS304 ( (6)

Stainless Steel A2-70 A4-80 SS201 SS304 ( (7)

Product Standards

Non-metallic insert locking hex flange nuts DIN 6926
thread size			M5	M6	M8	M10	M12	(M14)	M16	M20
d			M5	M6	M8	M10	M12	(M14)	M16	M20
P	pitch	coarse teeth	0.8	1	1.25	1.5	1.75	2	2	2.5
		fine teeth 1	/	/	1	1.25	1.5	1.5	1.5	1.5
		fine teeth 2	/	/	/	-1	-1.25	/	/	/
c	minimum		1	1.1	1.2	1.5	1.8	2.1	2.4	3
d a	minimum		5	6	8	10	12	14	16	20
d a	maximum value		5.75	6.75	8.75	10.8	13	15.1	17.3	21.6
dc	maximum value		11.8	14.2	17.9	21.8	26	29.9	34.5	42.8
dw	minimum		9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
and	minimum		8.79	11.05	14.38	16.64	20.03	23.36	26.75	32.95
h	maximum value		7.1	9.1	11.1	13.5	16.1	18.2	20.3	24.8
h	minimum		6.74	8.74	10.67	13.07	15.67	17.68	19.46	23.96
m	minimum		4.7	5.7	7.6	9.6	11.6	13.3	15.3	18.9
mw	minimum		2.2	3.1	4.5	5.5	6.7	7.8	9	11.1
s	max = nominal		8	10	13	15	18	twenty one	twenty four	30
s	minimum		7.78	9.78	12.73	14.73	17.73	20.67	23.67	29.16
r	maximum value		0.3	0.36	0.48	0.6	0.72	0.88	0.96	1.2
①,Material: Steel, property class (material): 8, 10, 12 (≤M16) according to DIN ISO 898-2, DIN 267-23; insert material: nylon

Non-metallic insert locking hex flange nuts DIN EN 1663
thread size		M5	M6	M8	M10	M12	(M14)	M16	M20
d		M5	M6	M8	M10	M12	(M14)	M16	M20
P	pitch	0.8	1	1.25	1.5	1.75	2	2	2.5
c	minimum	1	1.1	1.2	1.5	1.8	2.1	2.4	3
d a	minimum	5	6	8	10	12	14	16	20
d a	maximum value	5.75	6.75	8.75	10.8	13	15.1	17.3	21.6
dc	maximum value	11.8	14.2	17.9	21.8	26	29.9	34.5	42.8
dw	minimum	9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9
and	minimum	8.79	11.05	14.38	17.77	20.03	23.36	26.75	32.95
h	maximum value	7.1	9.1	11.1	13.5	16.1	18.2	20.3	24.8
h	minimum	6.52	8.52	10.4	12.8	15.4	16.9	19	22.7
m	minimum	4.7	5.7	7.6	9.6	11.6	13.3	15.3	18.7
mw	minimum	2.5	3.1	4.6	5.9	6.8	7.7	8.9	10.7
s	maximum value	8	10	13	16	18	21	24	30
s	minimum	7.78	9.78	12.73	15.73	17.73	20.67	23.67	29.16
r	maximum value	0.3	0.36	0.48	0.6	0.72	0.88	0.96	1.2
①,Material:
Steel, performance class 8: d≤M16,Type1; d>M16,Type2. Performance class 10: Type1. StandardprEN ISO 2320
