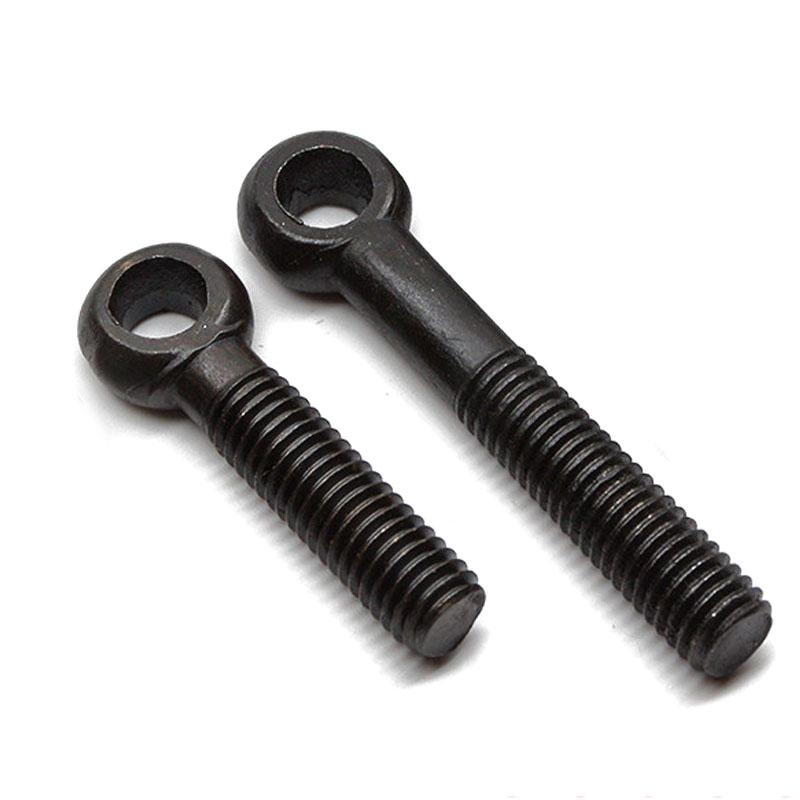

High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts Featured Image
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts

High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

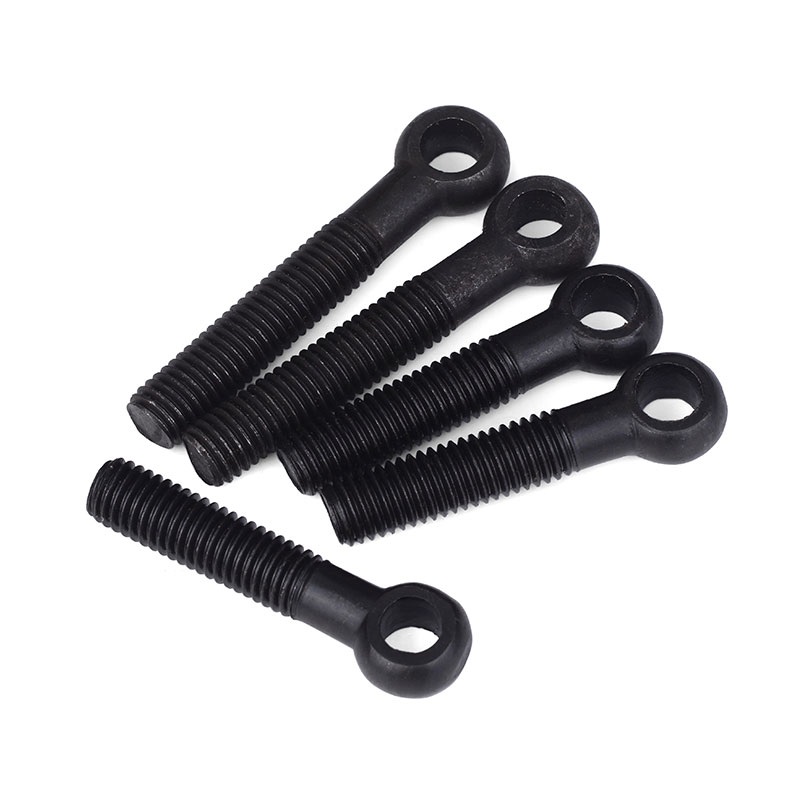

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts (7)
    Name Carriage Bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

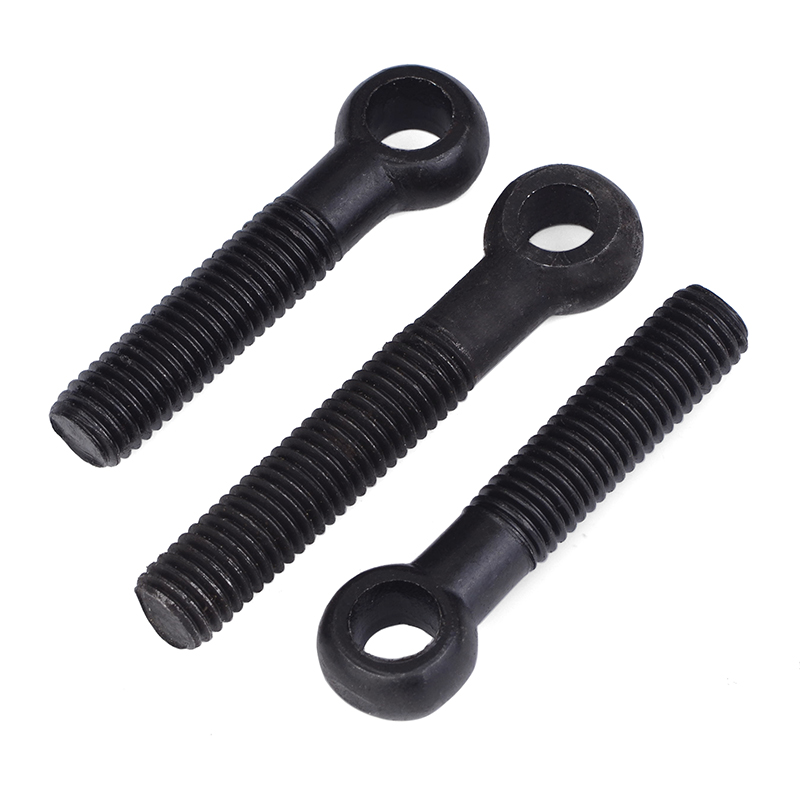

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts (8)

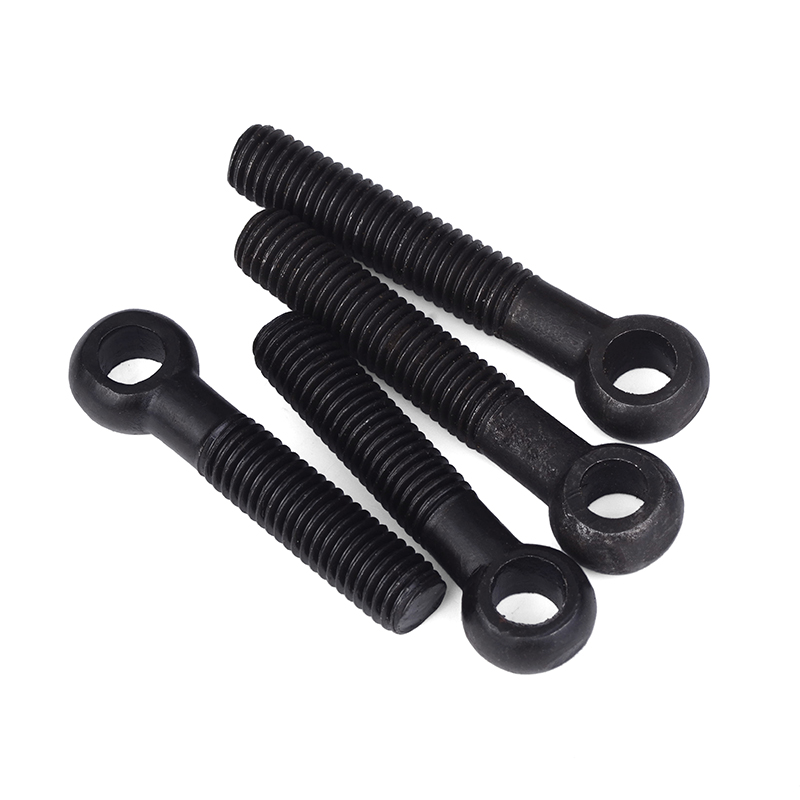

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts (6)

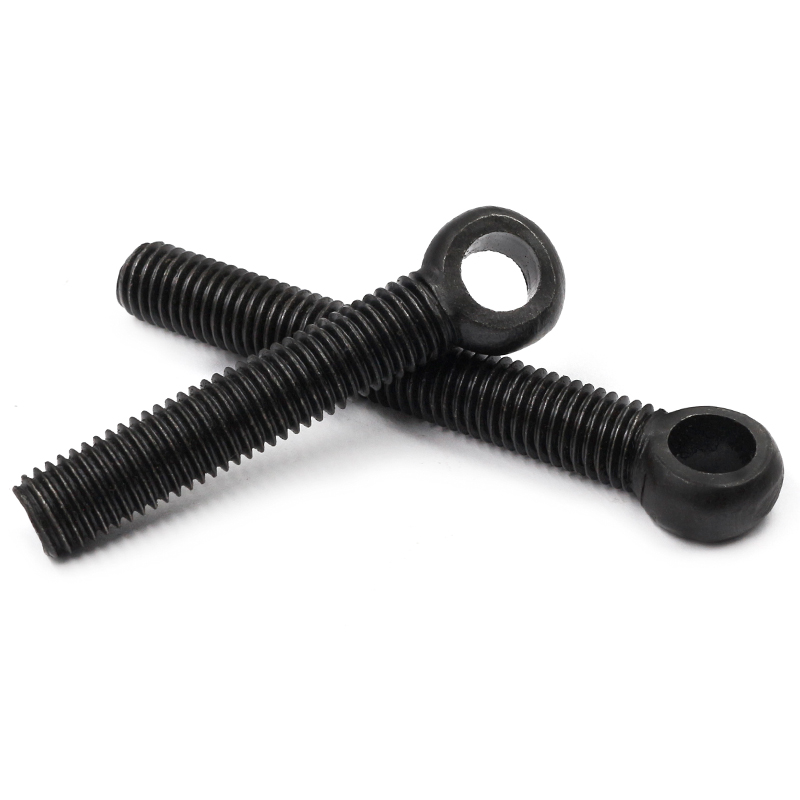

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts (4)

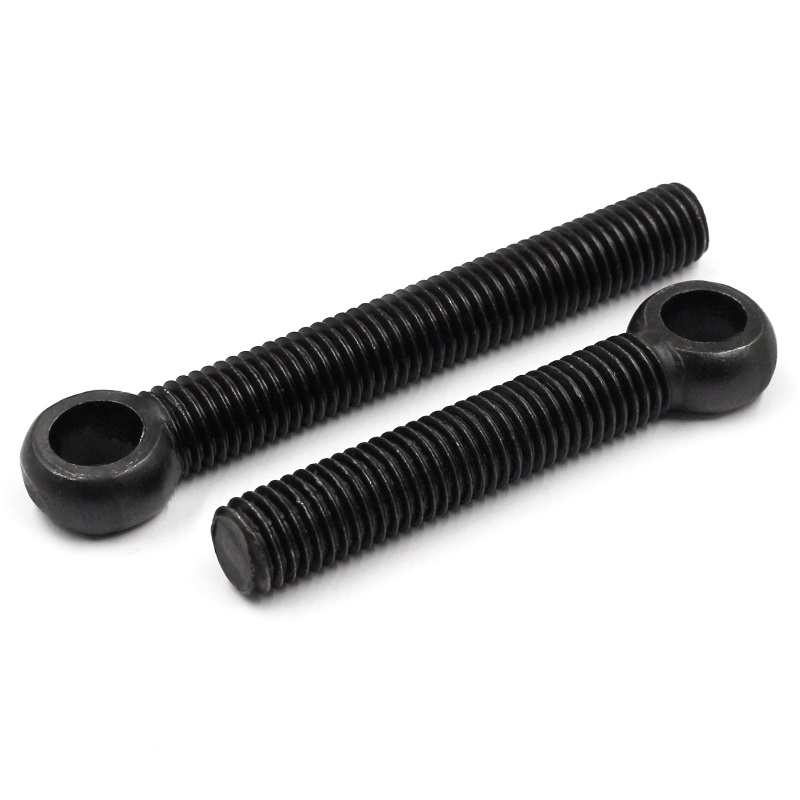

    High Strength Grade 4.8 8.8 10.9 12.9 Steel Black Oxede DIN444 Eye Bolts (2)

    Product Standards

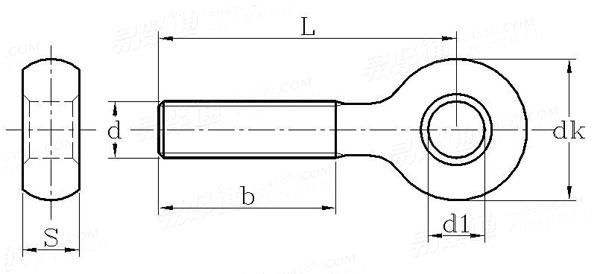

    detail6
    Joint Eye Bolts DIN 444
    Thread specification M5 M6 M8 M10 M12 M16 M20 M24 (M27)
    d
    P pitch 0.8 1 1.25 1.5 1.75 2 2.5 3 3
    b L≤125 16 18 twenty two 26 30 38 46 54 60
    125＜L≤200 - - 28 32 36 44 52 60 66
    L＞200 - - - - 49 57 65 73 79
    d 1 maximum value 5.03 6.03 8.036 10.036 12.043 16.043 18.043 22.052 24.052
    minimum 5 6 8 10 12 16 18 twenty two twenty four
    dk Types A, B and C maximum value 12 14 18 20 25 32 40 45 50
    Type A minimum 10.9 12.9 16.9 18.7 23.7 30.4 38.4 43.4 48.4
    Type B and C minimum 11.57 13.57 17.57 19.48 24.48 31.38 39.38 44.38 49.38
    s Type A maximum value 8 9 11 14 17 19 twenty four 28 30
    minimum 7.52 8.52 10.3 13.3 16.3 18.16 23.16 27.16 29.16
    Type B and C maximum value 6 7 9 12 14 17 twenty two 25 27
    minimum 5.88 6.85 8.85 11.82 13.82 16.82 21.79 24.79 26.79
    Thousand pieces of steel weight ≈kg - - - - - - - - -
    thread length b - - - - - - - - -
    Thread specification (M27) M30 M30 (M33) M36 M36 (M39) (M39)
    d
    P pitch 3 3.5 3.5 3.5 4 4 4 4
    b L≤125 60 66 66 - - - - -
    125＜L≤200 66 72 72 78 84 84 90 90
    L＞200 79 85 85 91 97 97 103 103
    d 1 maximum value 25.052 27.052 28.052 30.052 32.062 33.062 35.062 36.062
    minimum 25 27 28 30 32 33 35 36
    dk Types A, B and C maximum value 50 55 55 60 65 65 70 70
    Type A minimum 48.4 53.1 53.1 58.1 63.1 63.1 68.1 68.1
    Type B and C minimum 49.38 54.26 54.26 59.26 64.26 64.26 69.26 69.26
    s Type A maximum value 30 34 34 38 41 41 46 46
    minimum 29.16 33 33 37 40 40 45 45
    Type B and C maximum value 27 30 30 34 38 38 41 41
    minimum 26.79 29.79 29.79 33.75 37.75 37.75 40.75 40.75
    Thousand pieces of steel weight ≈kg - - - - - - - -
    thread length b - - - - - - - -
