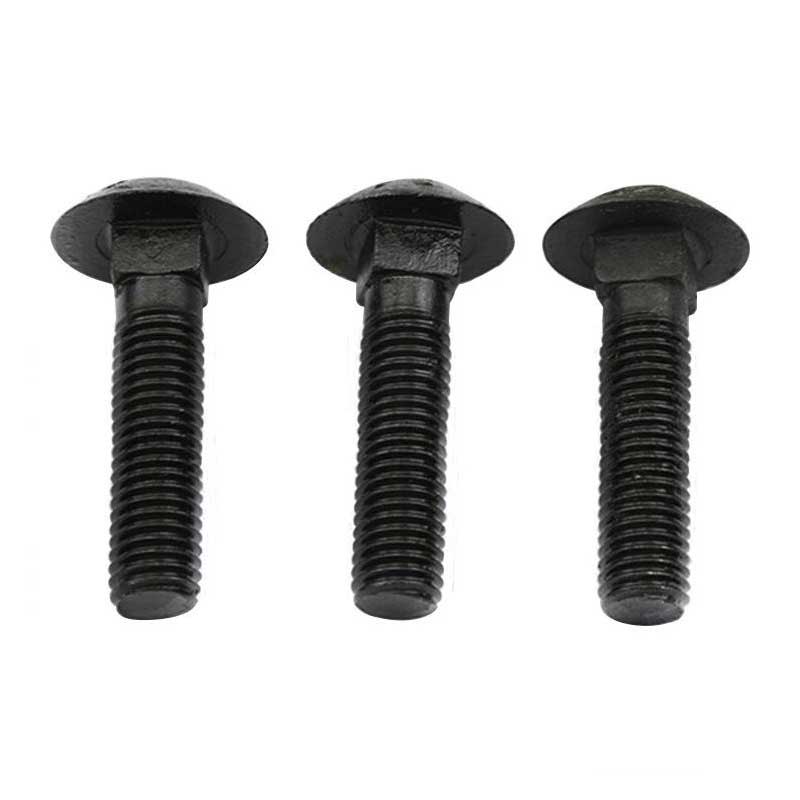

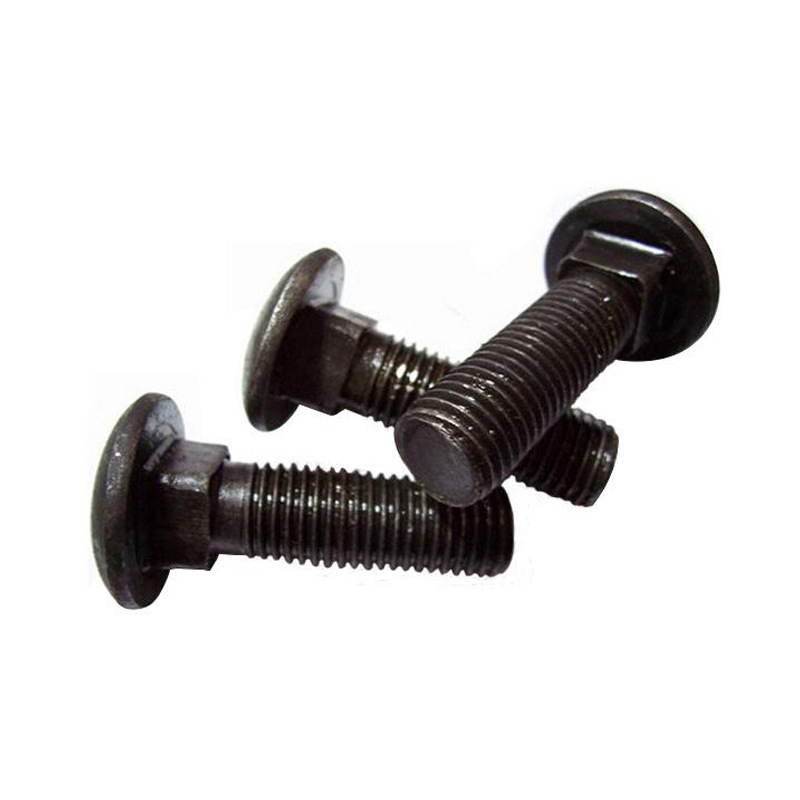

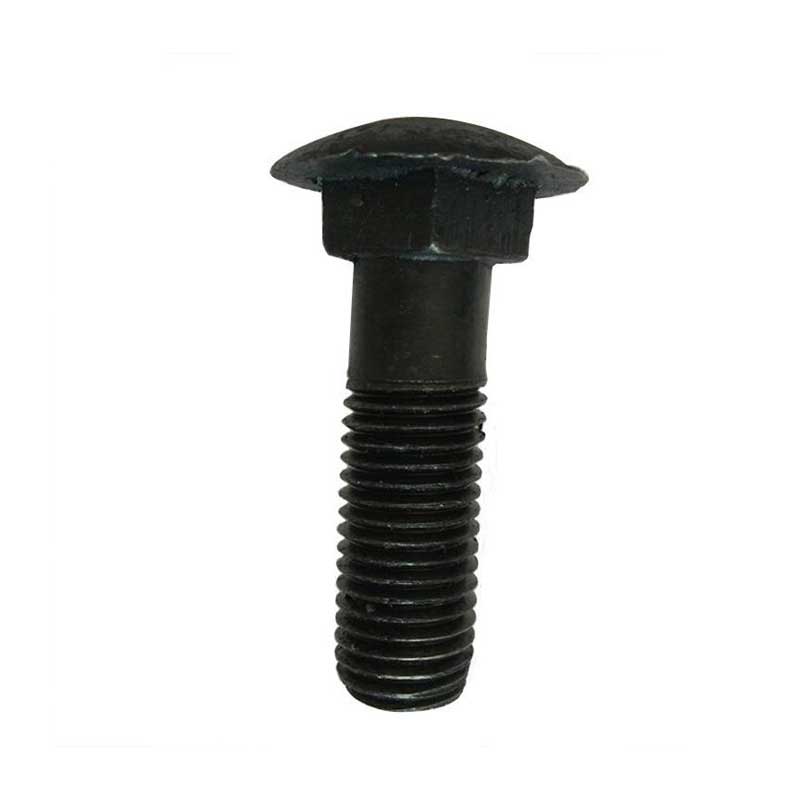

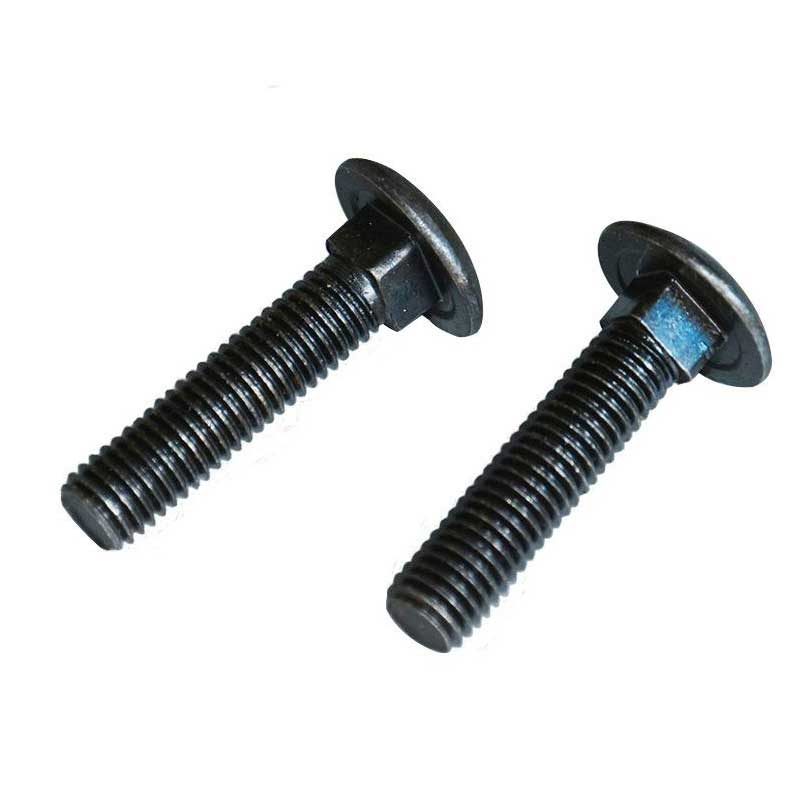

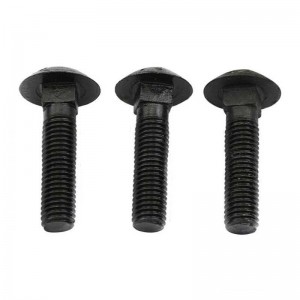

High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts Featured Image
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts
  • High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts

High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

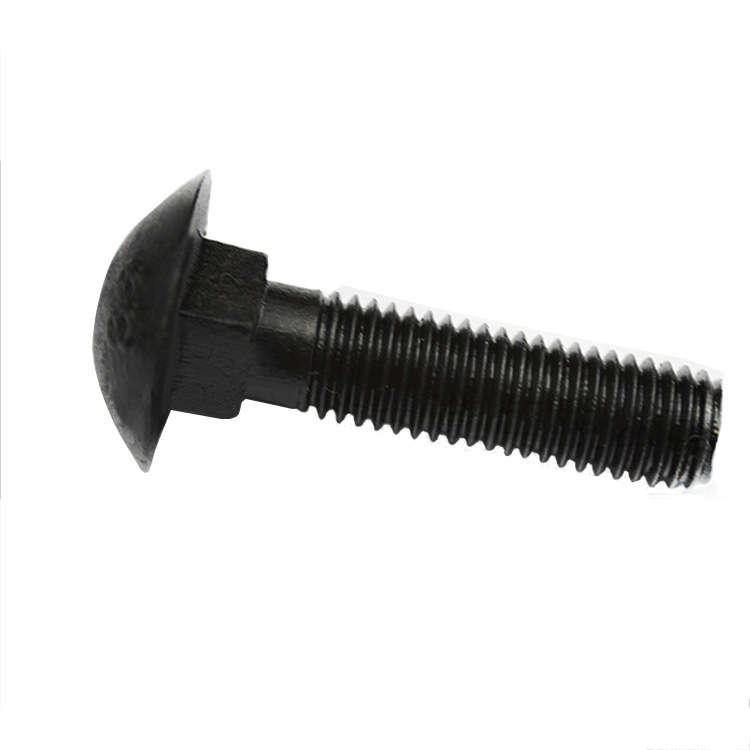

    High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts (9)
    Name Carriage Bolts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 15-500
    Materials Carbon Steel/Stainless Steel
    Strength level 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

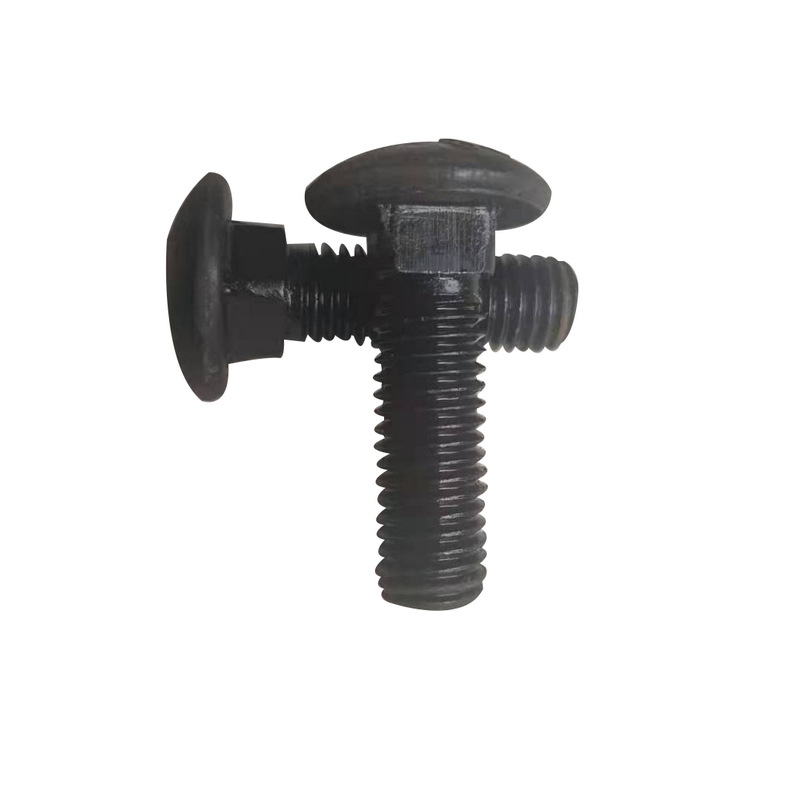

    High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts (10)

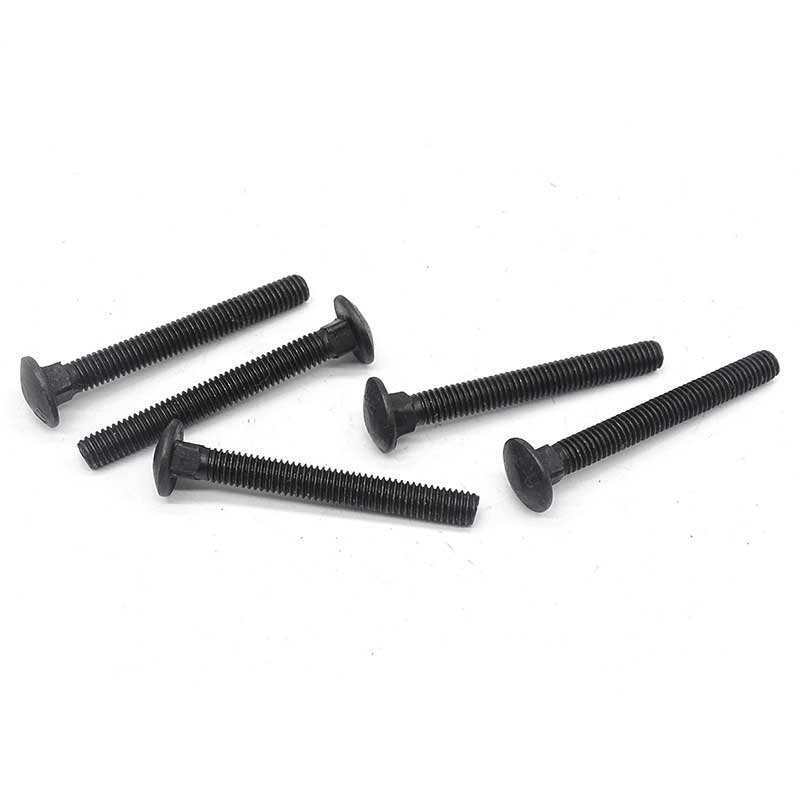

    High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts (6)

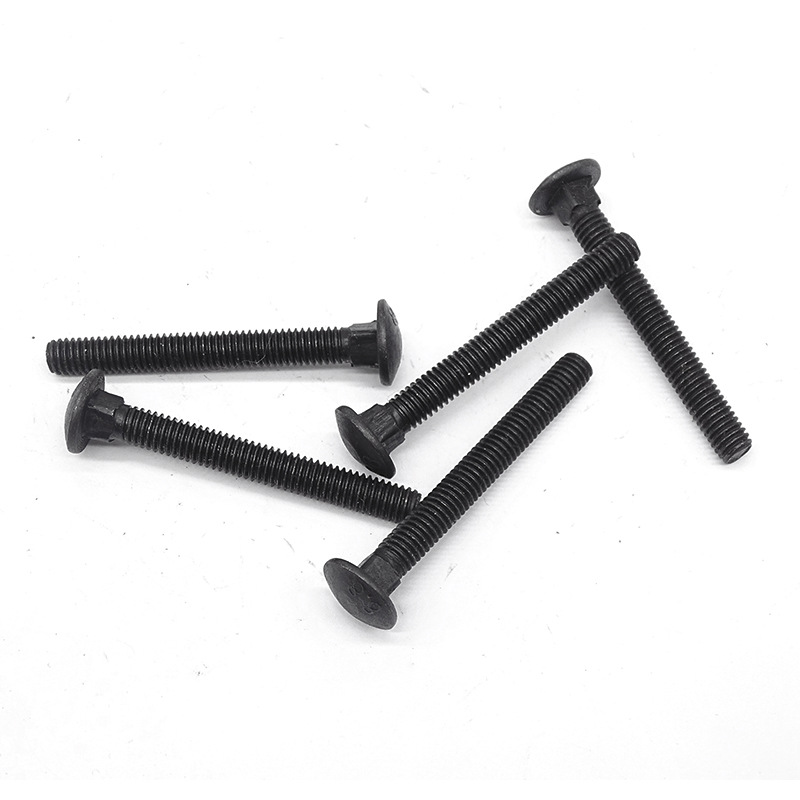

    High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts (8)

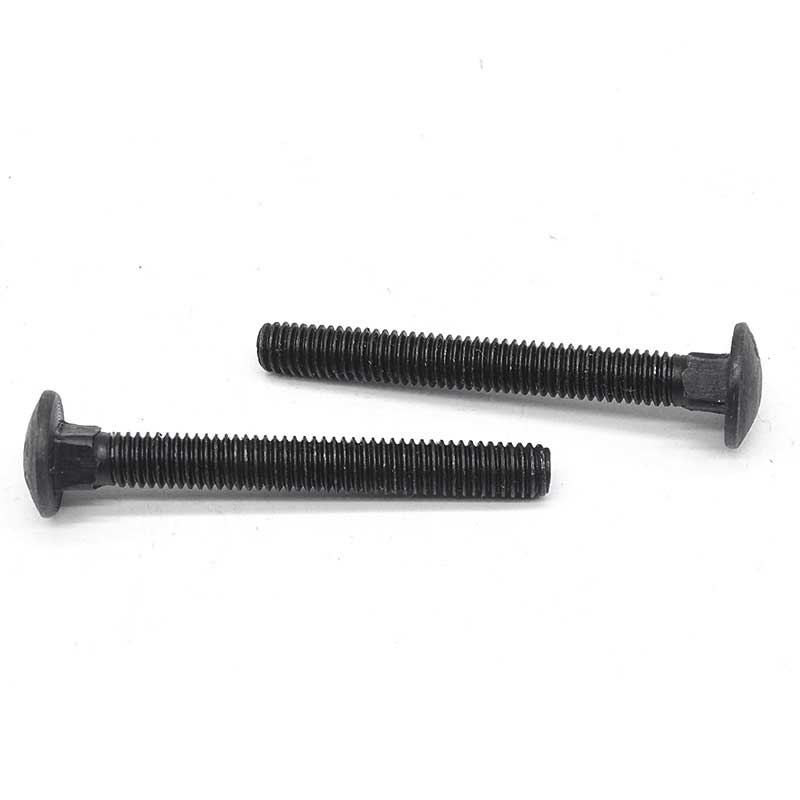

    High Strength Grade 4.8 8.8 10.9 12.9 Black Oxide DIN603 Carriage Bolts (5)

    Product Standards

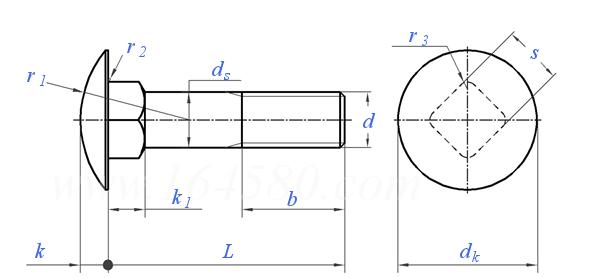

    detail5
    Large round head square neck bolts DIN 603
    Thread specification M5 M6 M8 M10 M12 M16 M20
    d
    P pitch 0.8 1 1.25 1.5 1.75 2 2.5
    b L≤125 16 18 twenty two 26 30 38 46
    125＜L≤200 twenty two twenty four 28 32 36 44 52
    L>200 - - 41 45 49 57 65
    dk maximum value 13.55 16.55 20.65 24.65 30.65 38.8 46.8
    minimum 12.45 15.45 19.35 23.35 29.35 37.2 45.2
    ds maximum value 5 6 8 10 12 16 20
    minimum 4.52 5.52 7.42 9.42 11.3 15.3 19.16
    k 1 maximum value 4.1 4.6 5.6 6.6 8.75 12.9 15.9
    minimum 2.9 3.4 4.4 5.4 7.25 11.1 14.1
    k maximum value 3.3 3.88 4.88 5.38 6.95 8.95 11.05
    minimum 2.7 3.12 4.12 4.62 6.05 8.05 9.95
    r 1 ≈ 10.7 12.6 16 19.2 24.1 29.3 33.9
    r 2 maximum value 0.5 0.5 0.5 0.5 1 1 1
    r 3 maximum value 0.75 0.9 1.2 1.5 1.8 2.4 3
    s maximum value 5.48 6.48 8.58 10.58 12.7 16.7 20.84
    minimum 4.52 5.52 7.42 9.42 11.3 15.3 19.16
    Thousand pieces of steel weight ≈kg - - - - - - -
    thread length b - - - - - - -
