High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nuts

Moq:

test

Price:

test

Package:

test

Export port:

test

Delivery date:

test

Payment method:

test

Stainless Steel A2-70 A4-80 SS201 SS304 SS316 D...

MOQ:111

Price:111
Stainless Steel A2-70 A4-80 SS201 SS304 SS316 B...

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Color Yello...

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Black Oxide...

MOQ:111

Price:111
Brass Copper Barrel Nuts

MOQ:111

Price:111
High Strength Grade 4 8 10 12 Steel Galvanized ...

MOQ:111

Price:111

Product Detail

Product Tags

Product Photos and Information

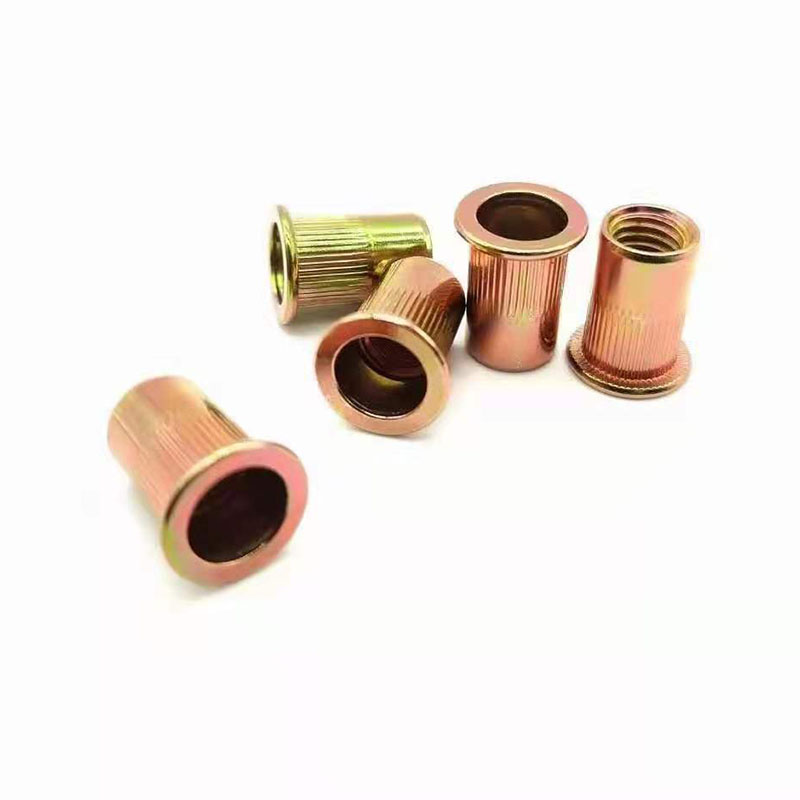

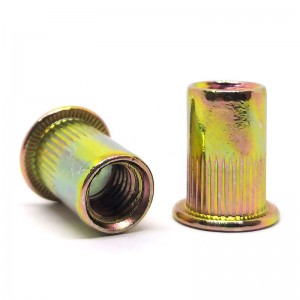

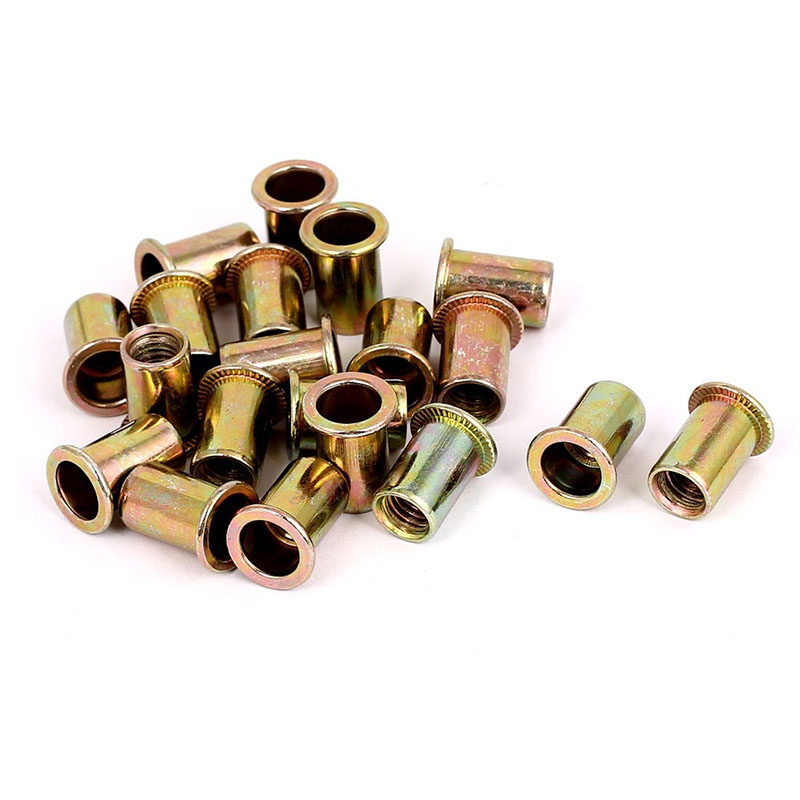

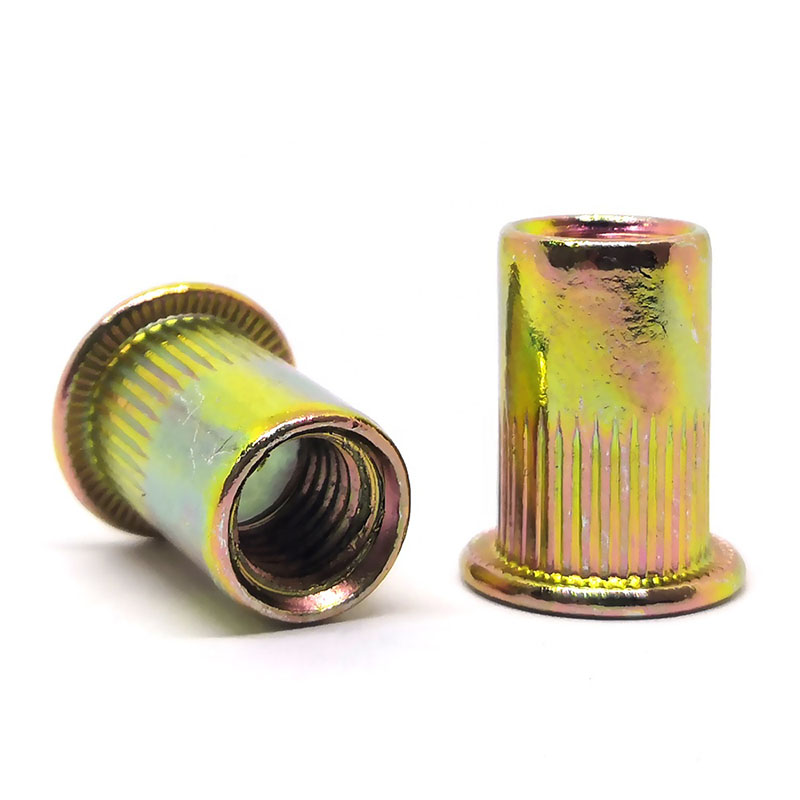

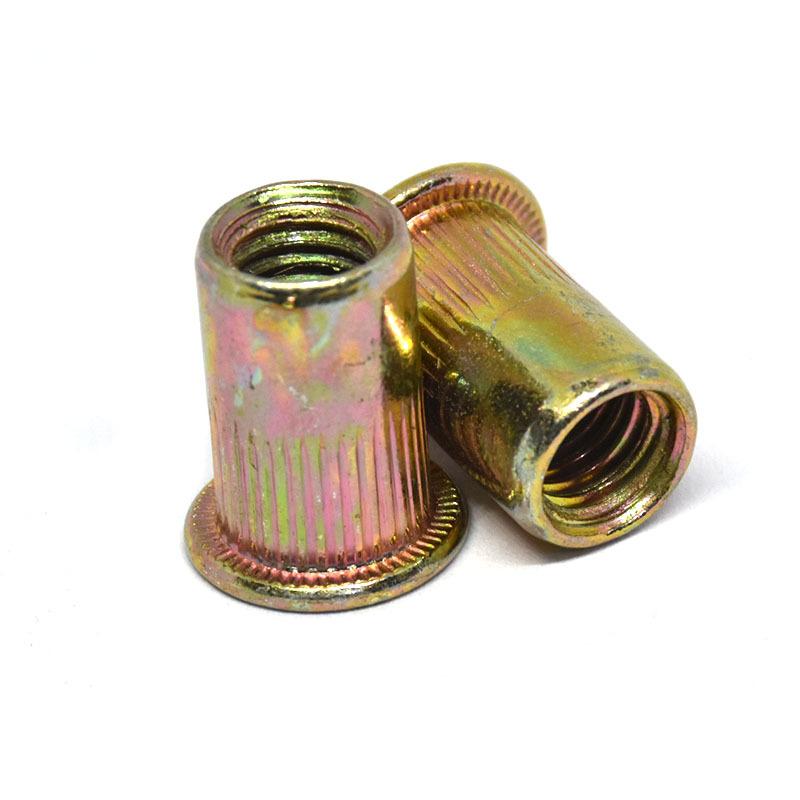

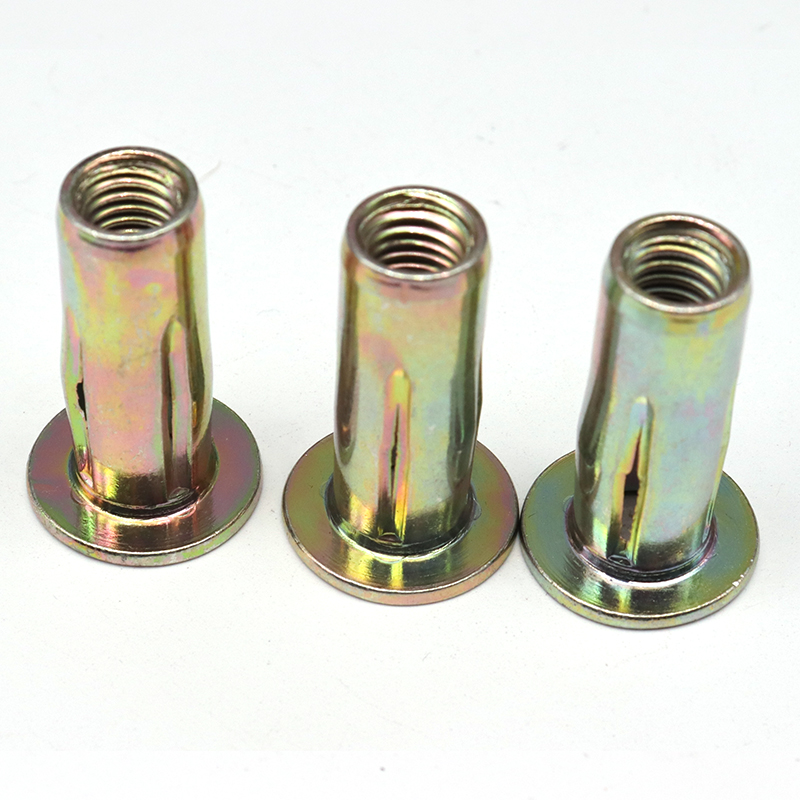

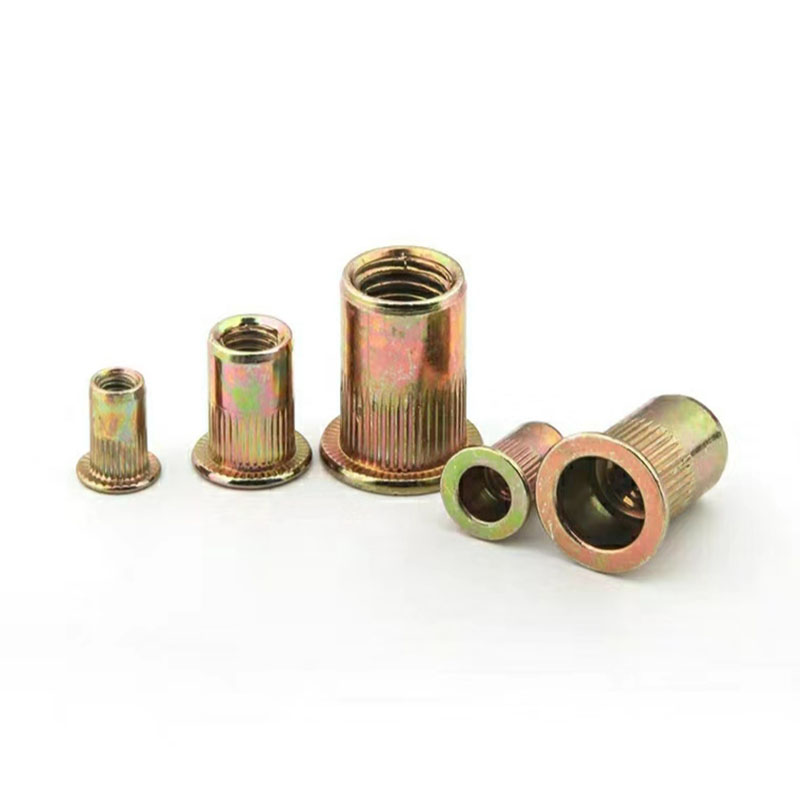

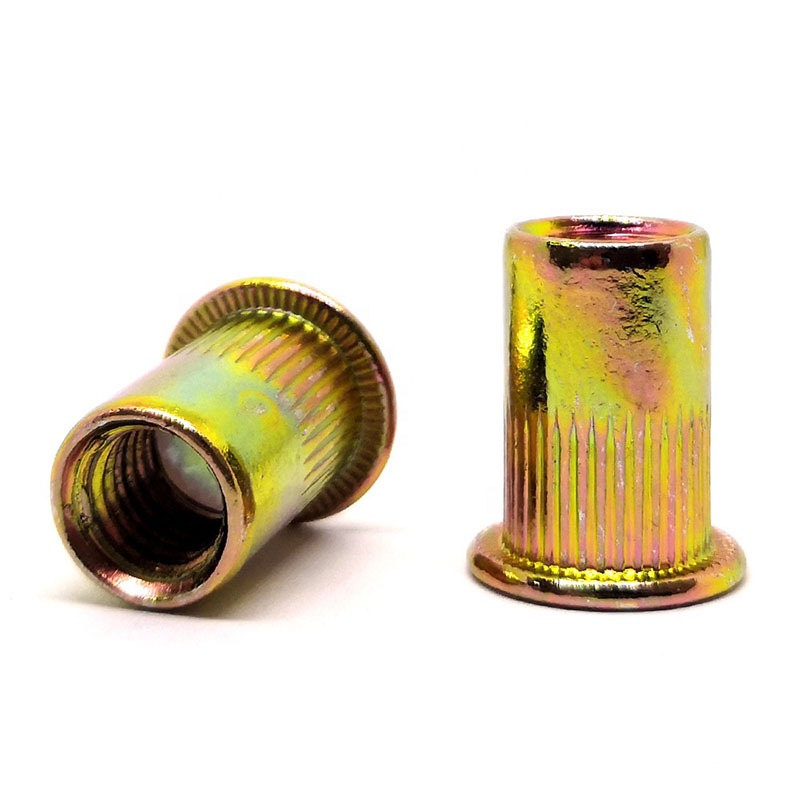

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nut ( (7)

Name	Rivet Nuts
Standards	DIN ISO ANC BSW JIS etc.
Size	M3-M12
Length	9-24
Materials	Carbon Steel/Stainless Steel
Strength level	4 5 8
Surface finish	ZPHDGBLACKDacromet etc.
Samples	Available

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nut ( (3)

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nut ( (5)

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nut (

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN7340 Rivet Nut ( (10)

Product Standards

Flat head full hollow rivets DIN 7340
Nominal diameter		F1	Φ1.2	Φ1.5	Φ1.5	Φ2	Φ2	Φ2.5	Φ2.5	Φ2.5	F3	F3	F3	F4	F4	F4
d		F1	Φ1.2	Φ1.5	Φ1.5	Φ2	Φ2	Φ2.5	Φ2.5	Φ2.5	F3	F3	F3	F4	F4	F4
d	maximum value	1.03	1.23	1.53	1.53	2.03	2.03	2.55	2.55	2.55	3.05	3.05	3.05	4.07	4.07	4.07
d	minimum	0.97	1.17	1.47	1.47	1.97	1.97	2.45	2.45	2.45	2.95	2.95	2.95	3.93	3.93	3.93
dk	Nominal	1.6	2	2.5	2.5	3.2	3.2	4	4	4	4.5	4.5	4.5	6	6	6
	maximum value	1.75	2.15	2.65	2.65	3.4	3.4	4.2	4.2	4.2	4.7	4.7	4.7	6.25	6.25	6.25
	minimum	1.45	1.85	2.35	2.35	3	3	3.8	3.8	3.8	4.3	4.3	4.3	5.75	5.75	5.75
k	≈	0.25	0.3	0.35	0.4	0.4	0.45	0.4	0.5	0.6	0.5	0.5	0.6	0.65	0.7	0.8
h	Nominal	0.2	0.2	0.2	0.25	0.2	0.3	0.25	0.3	0.4	0.25	0.3	0.5	0.3	0.4	0.5
	maximum value	0.22	0.22	0.22	0.275	0.22	0.33	0.275	0.33	0.44	0.275	0.33	0.55	0.33	0.44	0.55
	minimum	0.18	0.18	0.18	0.225	0.18	0.27	0.225	0.27	0.36	0.225	0.27	0.45	0.27	0.36	0.45
Thousand pieces of steel weight ≈kg		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Nominal diameter		F5	F5	F5	F6	F6	F6	F6	F8	F8	F8	F8	Φ10	Φ10	Φ10
d		F5	F5	F5	F6	F6	F6	F6	F8	F8	F8	F8	Φ10	Φ10	Φ10
d	maximum value	5.07	5.07	5.07	6.01	6.01	6.01	6.01	8.01	8.01	8.01	8.01	10.01	10.01	10.01
d	minimum	4.93	4.93	4.93	5.99	5.99	5.99	5.99	7.99	7.99	7.99	7.99	9.99	9.99	9.99
dk	Nominal	7.5	7.5	7.5	9	9	9	9	12	12	12	12	15	15	15
	maximum value	7.75	7.75	7.75	9.25	9.25	9.25	9.25	12.3	12.3	12.3	12.3	15.3	15.3	15.3
	minimum	7.25	7.25	7.25	8.75	8.75	8.75	8.75	11.7	11.7	11.7	11.7	14.7	14.7	14.7
k	≈	0.75	0.9	1	0.95	1	1.1	1.3	1.2	1.3	1.4	1.5	1.5	1.6	1.7
h	Nominal	0.3	0.5	0.75	0.4	0.5	0.75	1	0.4	0.5	0.75	1	0.5	0.75	1
	maximum value	0.33	0.55	0.825	0.44	0.55	0.825	1.1	0.44	0.55	0.825	1.1	0.55	0.825	1.1
	minimum	0.27	0.45	0.675	0.36	0.45	0.675	0.9	0.36	0.45	0.675	0.9	0.45	0.675	0.9
Thousand pieces of steel weight ≈kg		-	-	-	-	-	-	-	-	-	-	-	-	-	-

About Us

Dabang Fasteners is a wholly-owned subsidiary of Hebei Chengyi Engineering Materials Co., Ltd.
Our parent company has 21 years experience in fastener production and is ISO9001 ISO14001 ISO45001 SGS certified.
We focus on providing customers with competitive products that meet user needs.
--- Factory price, saving 15-30% of the middleman price difference.
--- exporting to 154 countries, accumulatively serving 1800+ customers, rich export experience
--- 5000 tons in stock, up to 3000 tons per month, average delivery time 7-20 days.
--- After-sales team of 25 people, solve all after-sales problems

0 Risk Commitment
--- If the product quality and packaging problems are found after receiving the goods,
help solve the problem and unconditionally compensate the loss within 30 days.

Our added value
--- In China, provide you with free factory inspection services.
