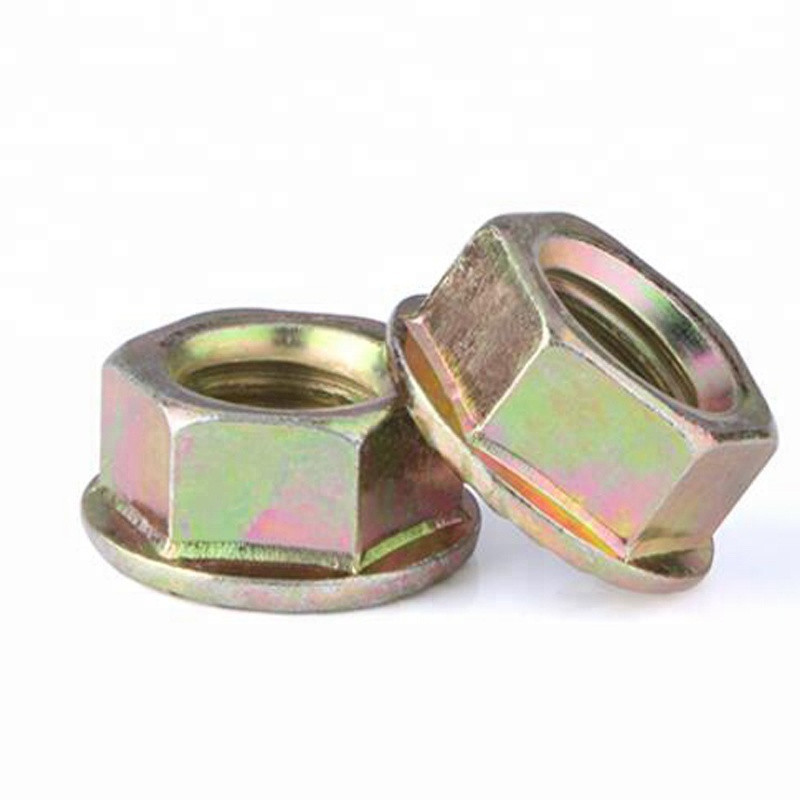

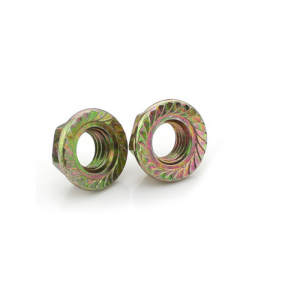

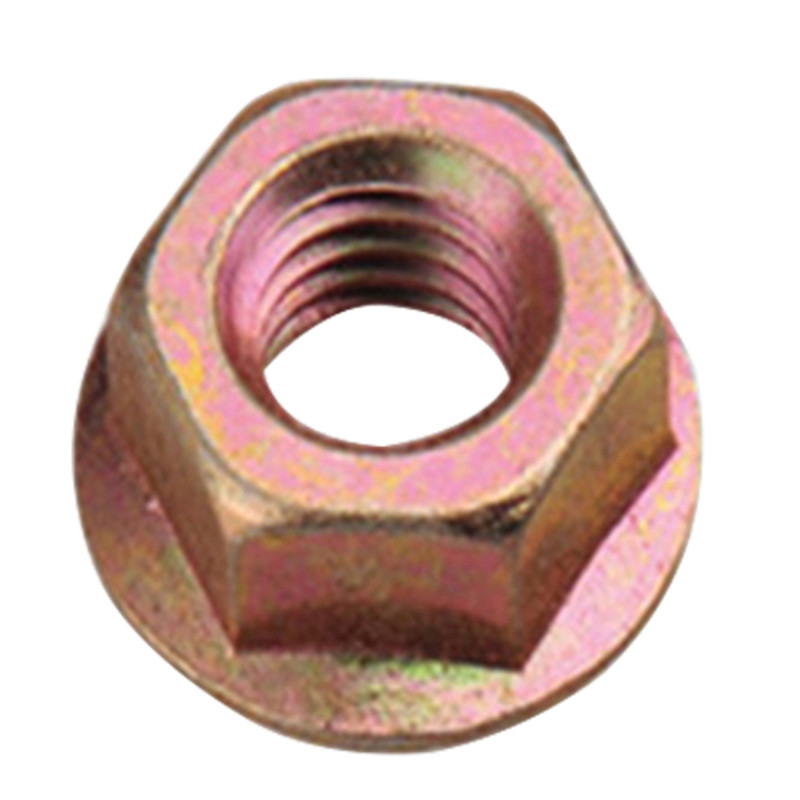

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts Featured Image
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts
  • High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts

High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex Flange Nuts


  • Moq:
    test
  • Price:
    test
  • Package:
    test
  • Export port:
    test
  • Delivery date:
    test
  • Payment method:
    test
    • Download All Products List

    Product Detail

    Product Tags

    Product Photos and Information

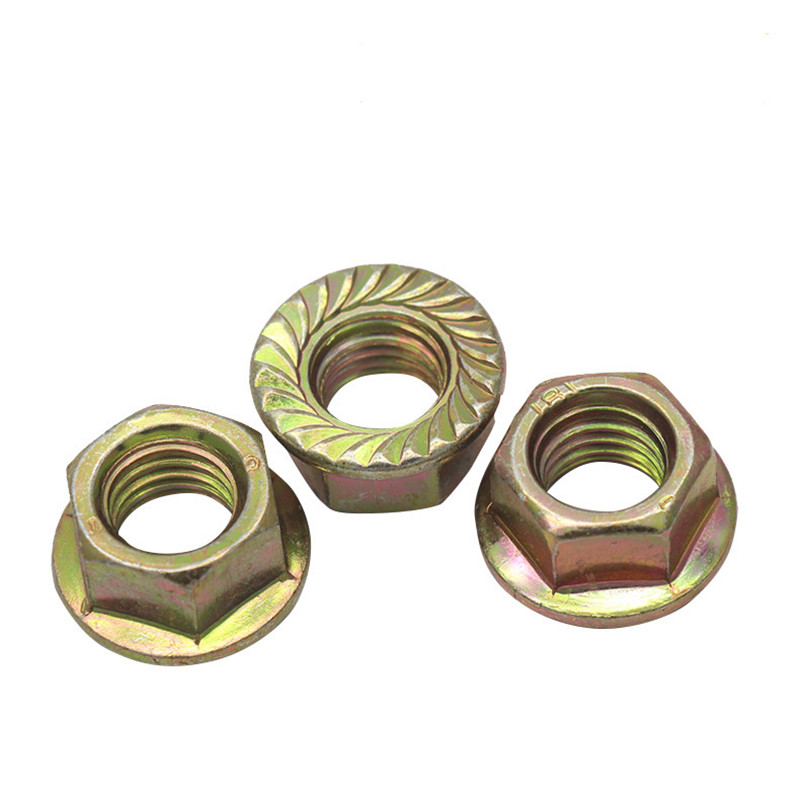

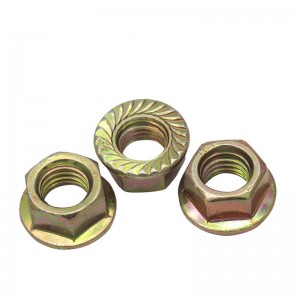

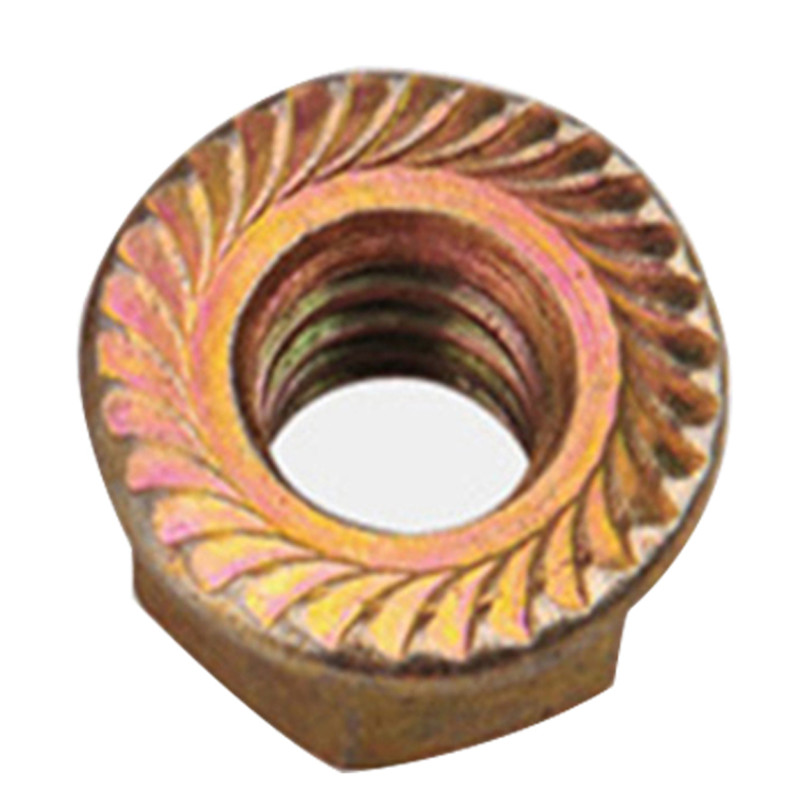

    High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex ( (8)
    Name Hex Flange Nuts
    Standards DIN ISO ANC BSW JIS etc.
    Size M3-M50
    Length 3-32
    Materials Carbon Steel/Stainless Steel
    Strength level 4 5 8 10 12 A2-70 A4-70 A4-80 etc.
    Surface finish ZPHDGBLACKDacromet etc.
    Samples Available

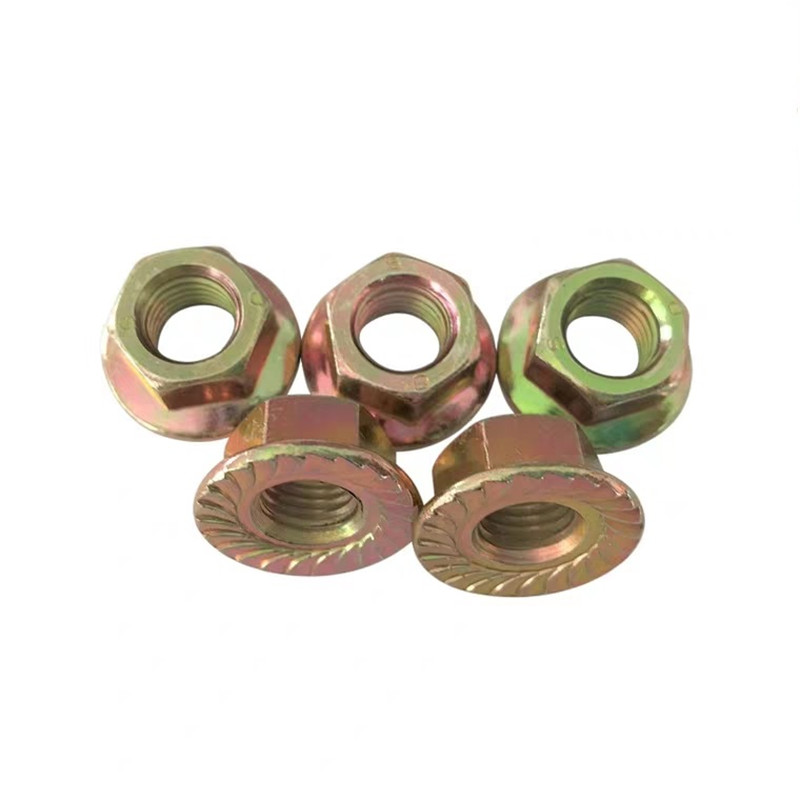

    High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex ( (7)

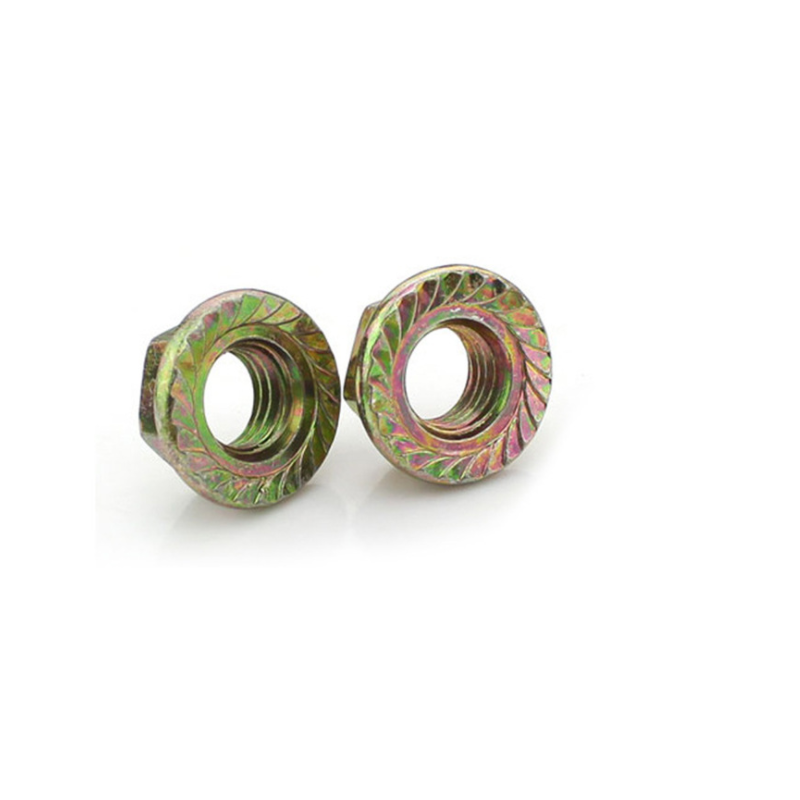

    High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex ( (6)

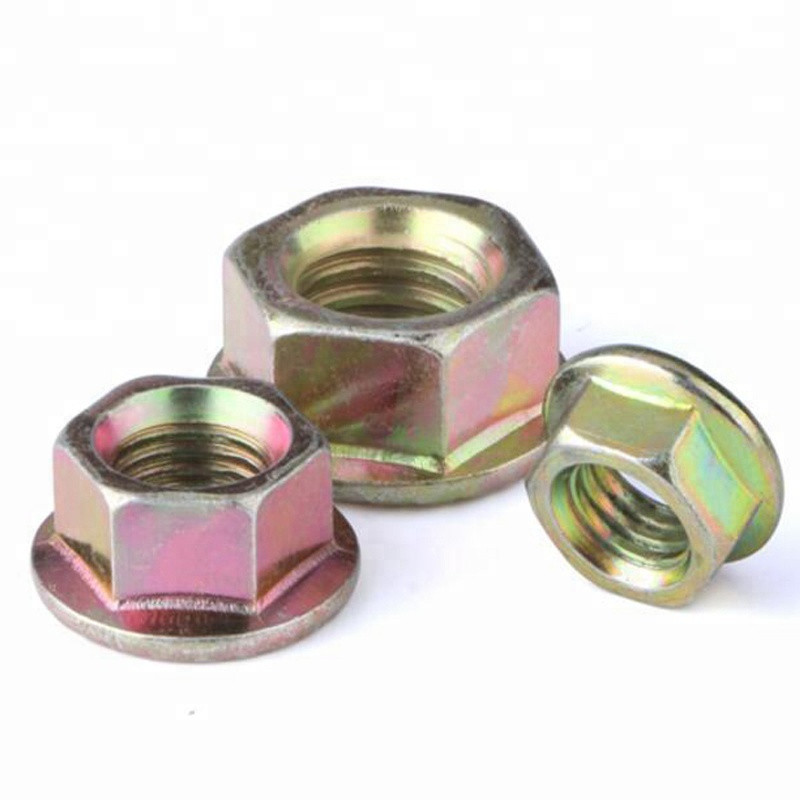

    High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex ( (6)

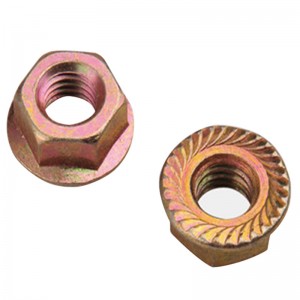

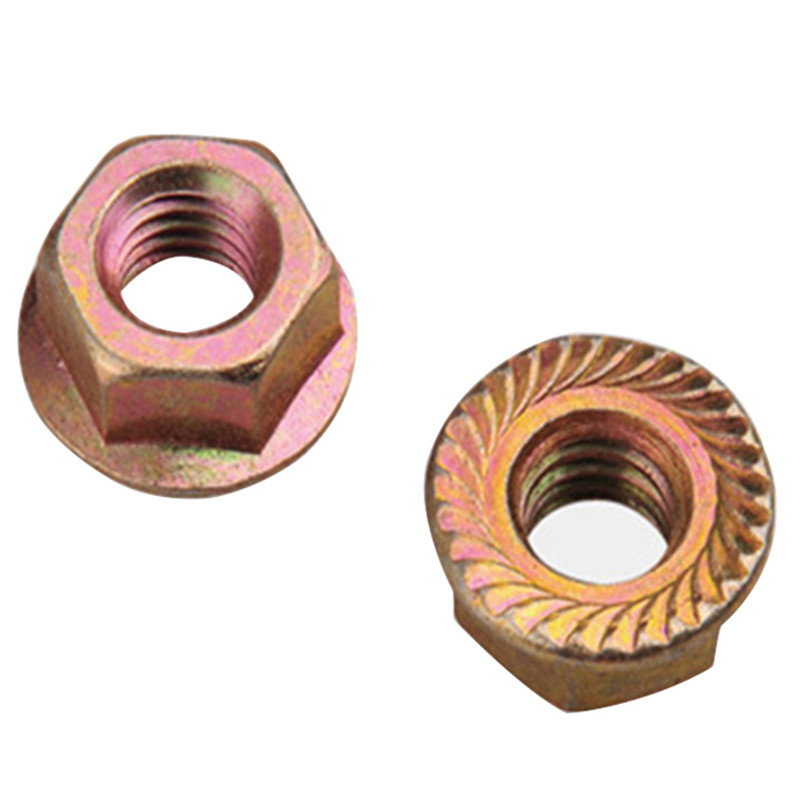

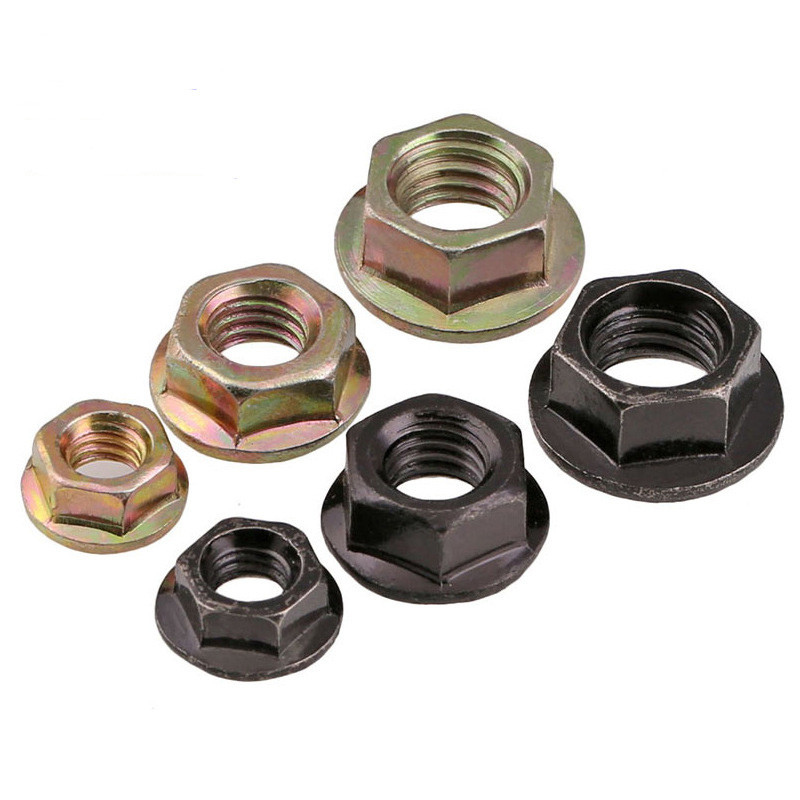

    High Strength Grade 4 8 10 12 Steel Color Yellow Zinc Plated DIN6923 Hex (1)

    Product Standards

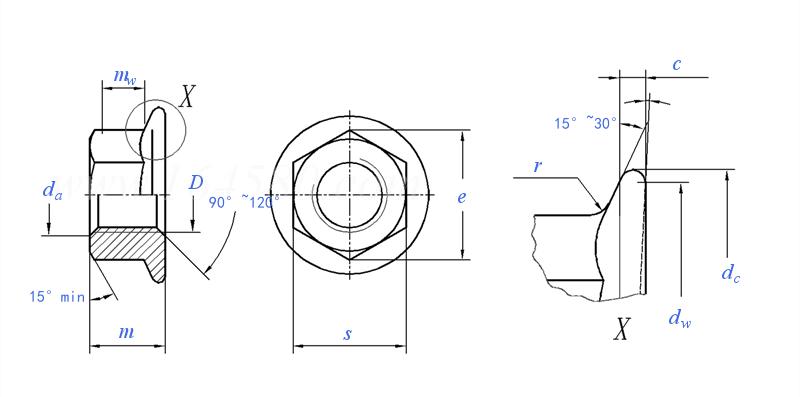

    detail18
    Hexagon flange nuts DIN 6923
    Thread size M5 M6 M8 M10 M12 M14 M16 M20
    D
    P pitch coarse teeth 0.8 1 1.25 1.5 1.75 2 2 2.5
    fine teeth 1 / / 1 1.25 1.5 1.5 1.5 1.5
    fine teeth 2 / / / -1 -1.25 / / /
    c minimum 1 1.1 1.2 1.5 1.8 2.1 2.4 3
    d a minimum 5 6 8 10 12 14 16 20
    maximum value 5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
    dc maximum value 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
    dw minimum 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
    and minimum 8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
    m maximum value 5 6 8 10 12 14 16 20
    minimum 4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.9
    mw minimum 2.2 3.1 4.5 5.5 6.7 7.8 9 11.1
    s max = nominal 8 10 13 15 18 twenty one twenty four 30
    minimum 7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.67
    r maximum value 0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2
